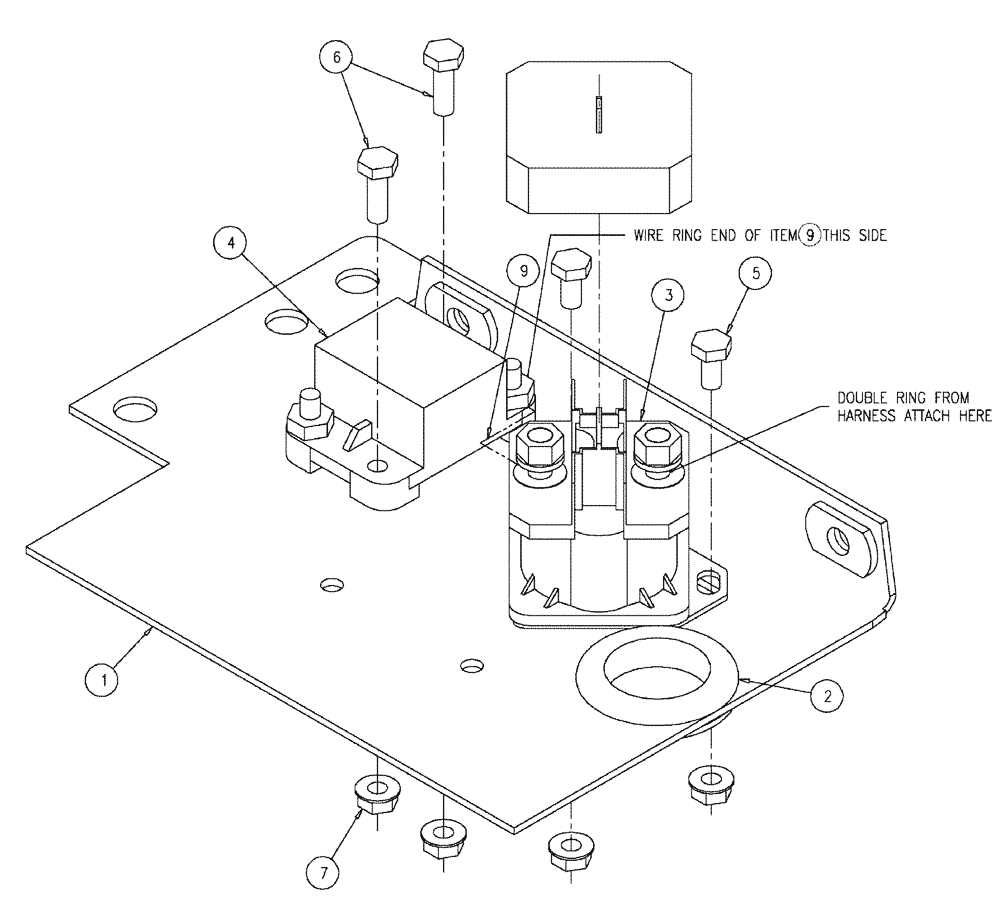

Запчасти Case IH SPX3200 (03-036) - SOLENOID MOUNT ASSEMBLY (01) - ENGINE

1

BN310891

MOUNTING PARTS

1шт.

2

BN309732

GROMMET

Rubber, 1.50 ID

1шт.

3

178149A1

SOLENOID SWITCH

Kit, With Barrier, Starter Relay

1шт.

4

BN69860

CIRCUIT BREAKER

150A

1шт.

5

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

6

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

7

280129

NUT,1/4"-20

4шт.

9

BN320105

CABLE

POS. C.B./Relay

1шт.

BN313034

PROTECTIVE COVER

Solenoid & Relay

1шт.

Not Shown

1шт.

BN50146

WASHER,3/8", Stainless

2шт.

Associated Part Of Shield, P/N BN313034

1шт.

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

Associated Part Of Shield, P/N BN313034

1шт.
