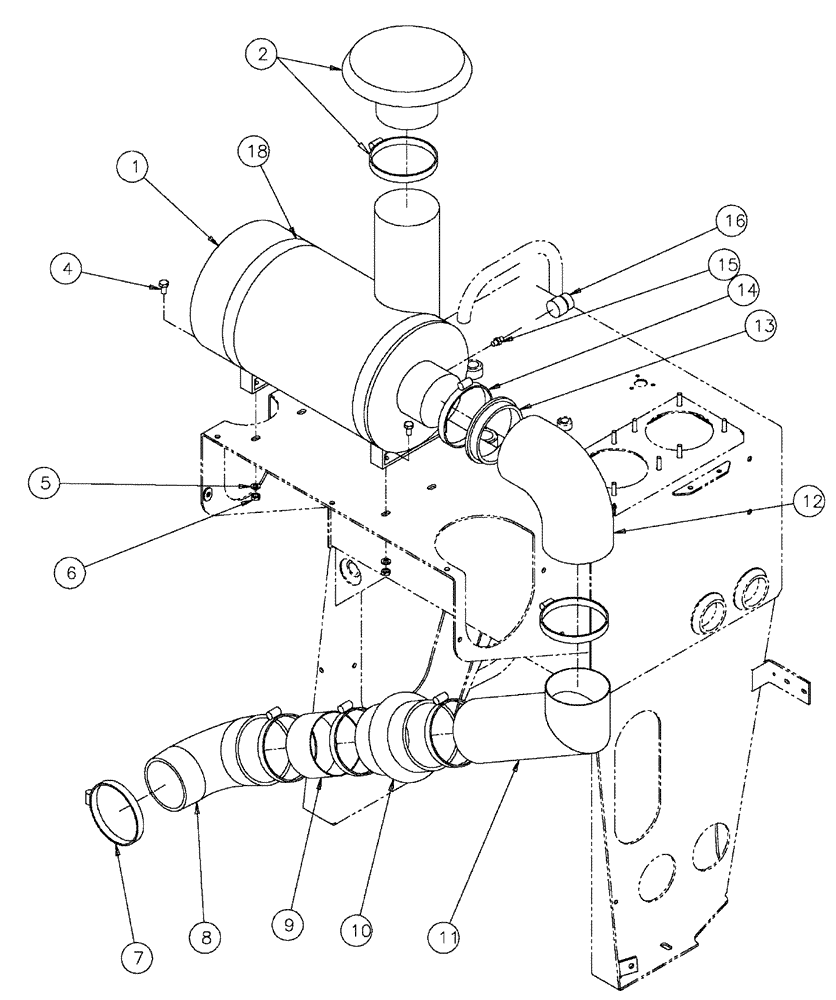

Запчасти Case IH SPX3200 (03-031) - AIR CLEANER PACKAGE (01) - ENGINE

1

247825A2

AIR CLEANER

4.5 outlet

1шт.

249987A1

FILTER, ELEMENT

ELEMENT, FILTER primary

1шт.

Service Parts For Ref. 1

1шт.

249988A1

FILTER, ELEMENT

ELEMENT, FILTER secondary

1шт.

Service Parts For Ref. 1

1шт.

8605079

COVER

assembly

1шт.

60-4452T2

FILTER

Air Inlet

1шт.

Service Parts For Ref. 1

1шт.

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

Evacuator

1шт.

Service Parts For Ref. 1

1шт.

D36264

FITTING

Adapter

1шт.

Service Parts For Ref. 1

1шт.

2

54-305

CAP

Hood, Air Inlet, With Clamp

1шт.

54-305

CAP

Hood, Air Inlet, With Clamp

1шт.

Associated Part Of Hood-Airinlet, P/N 54-305

1шт.

BN320355

CLAMP

hood, air inlet

1шт.

Associated Part Of Hood-Airinlet, P/N 54-305

1шт.

4

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

5

BN50146

WASHER,3/8", Stainless

4шт.

6

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

7

BN69643

CLAMP

T-Bolt 4.50 Longbolt

1шт.

8

BN306335

ELBOW

90°, 5 x 4

1шт.

9

BN318699

TUBE

Air Cleaner

1шт.

10

BN318717

HOSE,5.00" ID

Hump

1шт.

11

BN318698

TUBE

Air Cleaner, Weldment

1шт.

12

BN318716

5 X 5 X 90 Degree Rub

1шт.

13

BN318715

SLEEVE

reducer, inlet

1шт.

14

BN25675

CLAMP

T-Bolt 5 1/2"

5шт.

15

87014030

FITTING,1/8"-27 NPTF, Brass

, Start Serial: 6600

1шт.

15

BN68257

TEE

1/8 Npt Male-Female

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

16

BN66126

INDICATOR

Filter, Electric

1шт.

17

BN68258

INDICATOR

Restrict, 25" H2O, Start Serial: 6600

1шт.

18

S238773

CLAMP

Mount Band (Air Cleaner)

2шт.
