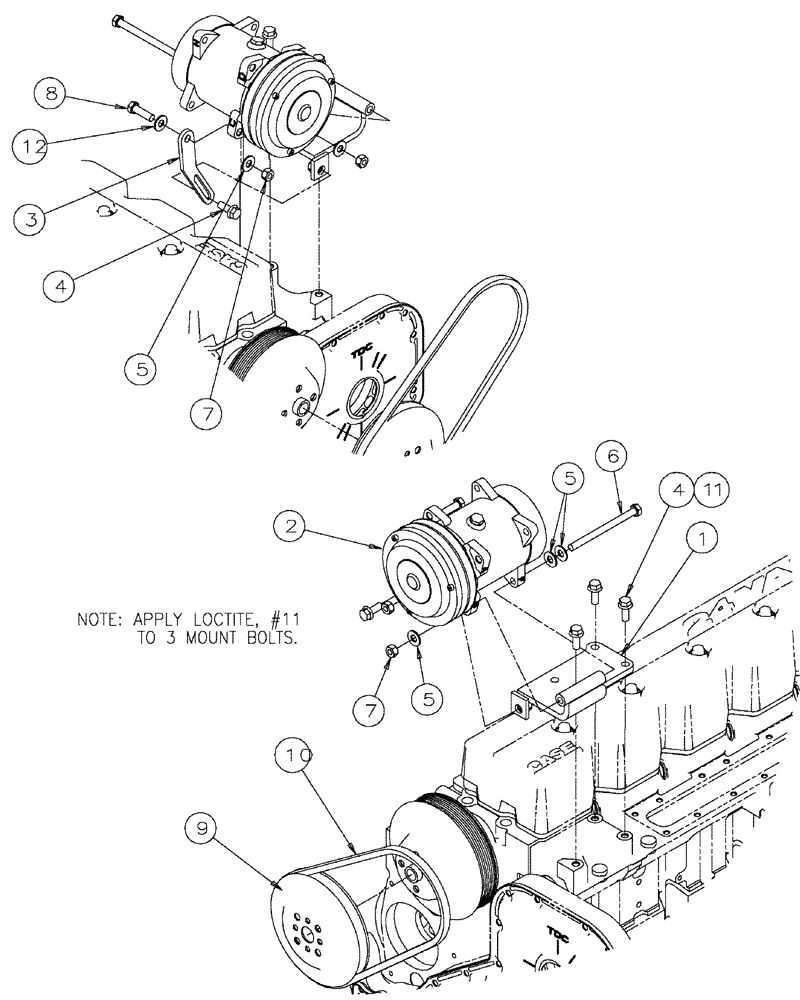

Запчасти Case IH SPX3200 (03-029) - AC COMPRESSOR PACKAGE (01) - ENGINE

1

191951A1

SUPPORT

bracket, compressor

1шт.

2

NS

NOT SERVICED

Compressor, A/C 12V

1шт.

See Fig. 03-005

1шт.

3

BN315445

BRACE

A/C Compressor Bracket

1шт.

4

905-10025

BOLT,Hex Flg, M10 x 25mm

4шт.

5

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

6

86508575

BOLT,Hex, M10 x 130mm, Cl 8.8

1шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

8

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

9

431716A1

PULLEY,147mm OD

A/C Drive

1шт.

10

90-7190T1

V-BELT,0.56" W x 40.25" L

1шт.

11

BN1243001

LOCTITE

243-31 Removable

1шт.

12

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

10.8 x 25 x 5 mm

1шт.
