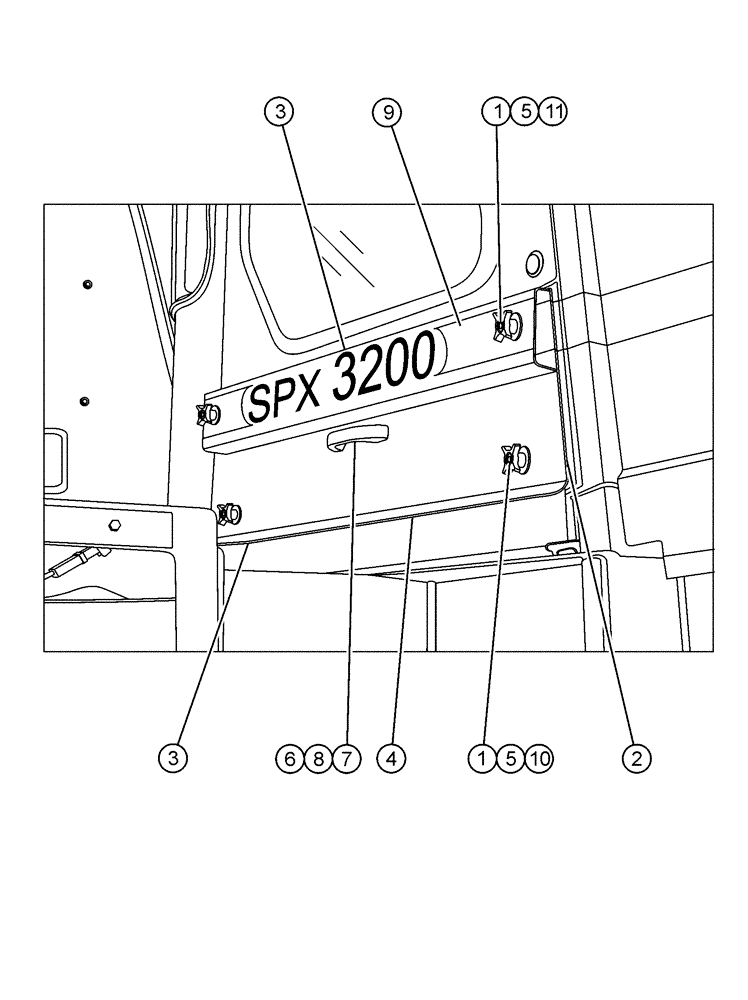

Запчасти Case IH SPX3200 (02-008) - ACCESS PANEL ASSEMBLY - RH Cab Exterior

1

BN65448

KNOB

3/8-16(F)

4шт.

2

342163A1

SEAL

electrical bay

2шт.

Not Shown

1шт.

Behind access panel

1шт.

3

84167815

RUBBER SEAL

Electrical Bay, Bulk Length 9'

2шт.

4

BN303165

PANEL, SIDE

Access

1шт.

5

BN303278

WASHER

NP, SS

4шт.

6

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

7

BN311626

HANDLE

Molded Grab, Black

1шт.

8

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

2шт.

9

342161A1

STIFFENER

panel

2шт.

10

80280644

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

2шт.

11

113-82

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

BN54139

GROMMET

Radar Cable, Not Shown

1шт.
