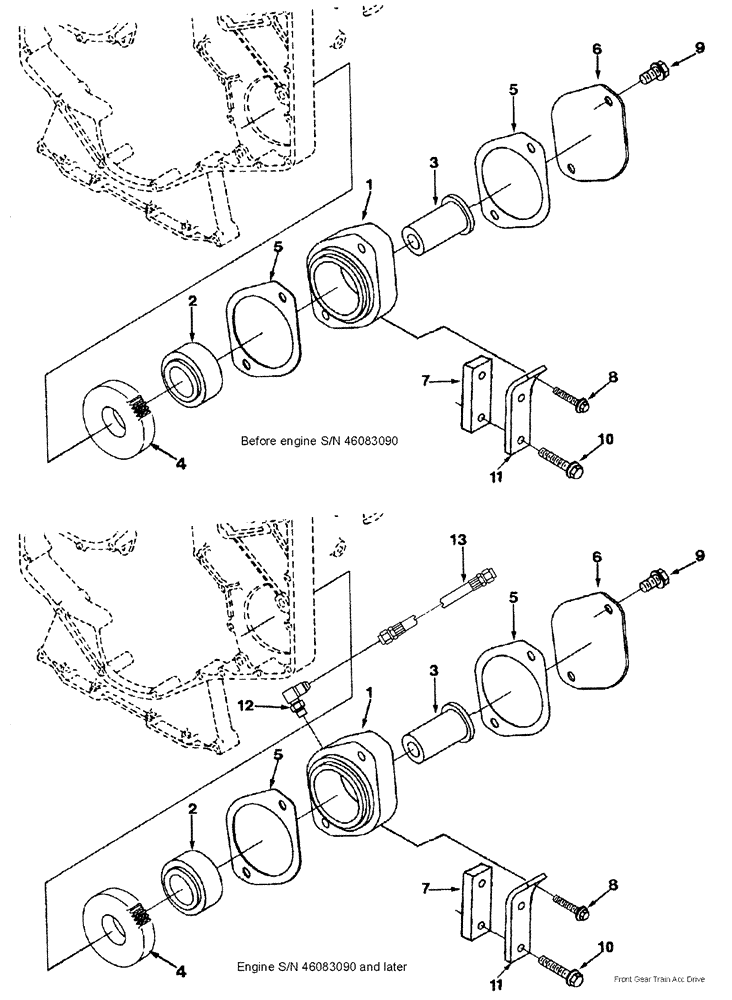

Запчасти Case IH SPX3200 (03-021) - FRONT GEAR TRAIN ACCESSORY DRIVE (01) - ENGINE

NSS

NOT SOLD SEPARAT

Drive Hydraulic Pump, Serial Range: -46083090

1шт.

1

J923237

ADAPTER

Hydraulic Pump, Serial Range: -46083090

1шт.

2

J902601

BEARING, ROLLER,35mm ID x 64mm OD x 37mm W

, Serial Range: -46083090

1шт.

3

J923242

SHAFT

Accessory Drive, Serial Range: -46083090

1шт.

4

J931338

GEAR

Accessory Drive, Serial Range: -46083090

1шт.

5

J929751

GASKET

Accessory Drive Cover, Serial Range: -46083090

1шт.

6

J914868

COVER

plate, access, flat, Serial Range: -46083090

1шт.

7

J931996

SPACER

Mounting, Serial Range: -46083090

1шт.

8

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

, Serial Range: -46083090

1шт.

9

854-12065

BOLT,Hvy Hex, M12 x 65mm, Cl 10.9

, Serial Range: -46083090

2шт.

10

87015908

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

, Serial Range: -46083090

2шт.

11

J931825

BRACE

Hydraulic Pump, Serial Range: -46083090

1шт.

J936222

DRIVE

Hydraulic Pump, Start Serial: 46083090

1шт.

1

J936129

FLANGE

Adapter, Hydraulic Pump, Start Serial: 46083090

1шт.

2

J935644

BEARING, ROLLER

, Start Serial: 46083090

1шт.

3

J935645

SHAFT

Accessory Drive, Start Serial: 46083090

1шт.

4

J936136

GEAR

Accessory Drive, Start Serial: 46083090

1шт.

5

J938655

GASKET,1.27mm Thk

Accessory Drive Cover, Start Serial: 46083090

2шт.

6

J914868

COVER

plate, access, flat, Start Serial: 46083090

1шт.

7

J931996

SPACER

Mounting, Start Serial: 46083090

1шт.

8

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

, Start Serial: 46083090

1шт.

9

854-12065

BOLT,Hvy Hex, M12 x 65mm, Cl 10.9

, Start Serial: 46083090

2шт.

10

87015908

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

, Start Serial: 46083090

2шт.

11

J931825

BRACE

Hydraulic Pump, Start Serial: 46083090

1шт.

12

J939694

ELBOW

, Start Serial: 46083090

1шт.

13

J924867

HOSE

Flexible, Start Serial: 46083090

1шт.
