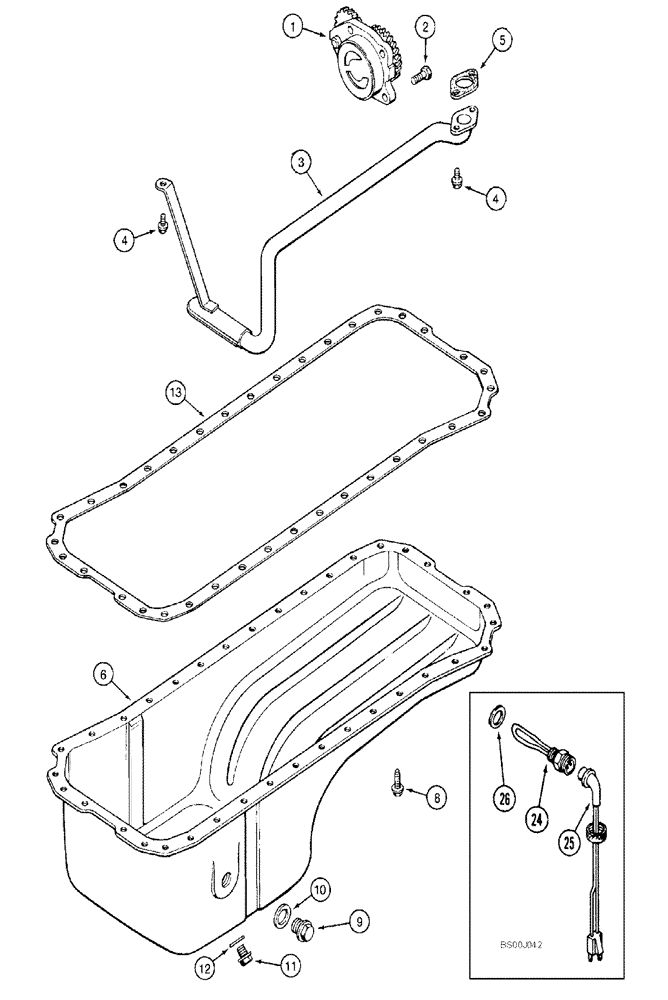

Запчасти Case IH SPX3200 (03-015) - OIL PUMP & OIL PAN (01) - ENGINE

1

J937404

PUMP, ENGINE OIL

1шт.

1

JR937404

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1

JC937404

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 X 30

4шт.

3

J921992

TUBE,25.4 mm OD x 359, 234 mm L

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J938157

GASKET,1.2mm Thk

mounting, oil suction tube

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL Oil

1шт.

8

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

36шт.

9

J924148

PLUG,M22 x 1.5

Hex, M22

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

11

J924147

PLUG,M18 x 1.5

Hex, M18

1шт.

12

J920773

SEALING WASHER

1шт.

13

NSS

NOT SOLD SEPARAT

Gasket, Mounting, Order: A77979

1шт.

A77979

GASKET KIT

Oil Pan

1шт.

Consists of Refs. 5, 12, 16

1шт.

16

A77490

KIT

Heater, Engine Oil

1шт.

24

NSS

NOT SOLD SEPARAT

Element, Heater (Order A77490)

1шт.

25

J905113

CABLE

Engine Block Heater

1шт.

26

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Scale, Plug

1шт.
