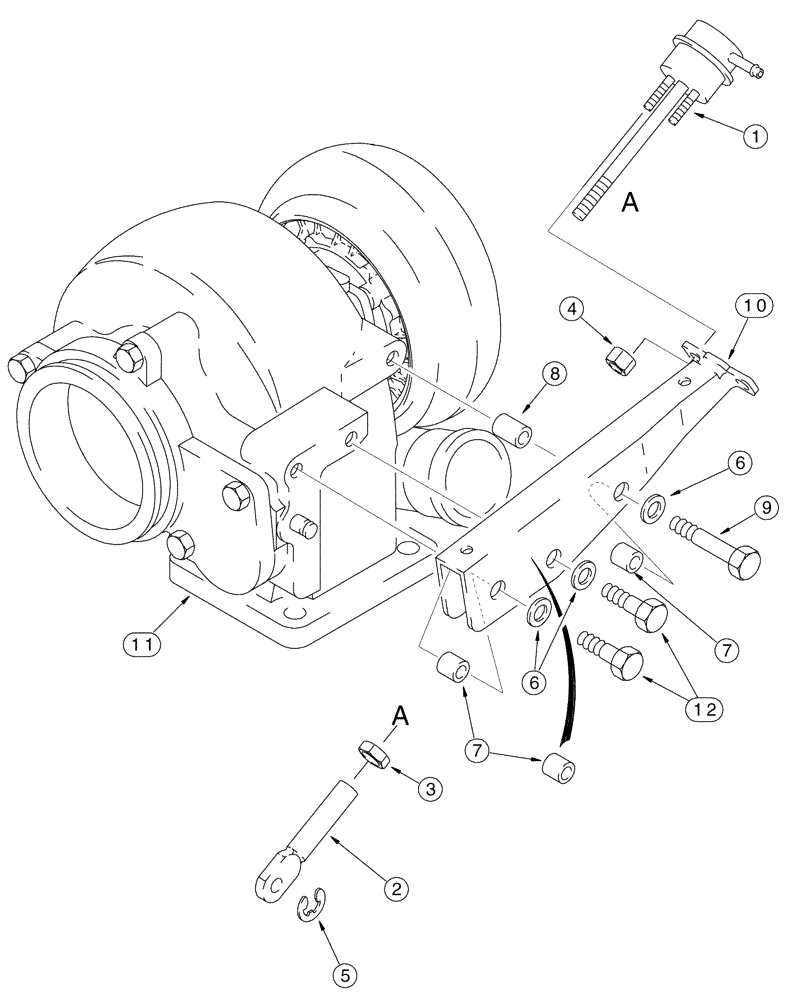

Запчасти Case IH SPX3200 (03-013) - WASTEGATE ACTUATOR (01) - ENGINE

J802695

TURBOCHARGER

1шт.

Consists Of Refs. 1 - 12, Also Includes Refs. 2 - 22

1шт.

See Fig. 03-012

1шт.

JR802695

REMAN-TURBOCHARGER

1шт.

JC536319

CORE-TURBOCHARGER

Return Number

1шт.

1

J594348

ACTUATOR

1шт.

2

J528177

LINK

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

4

J528204

LOCK NUT

Lock

2шт.

5

J528221

CIRCLIP

1шт.

NSS

NOT SOLD SEPARAT

Housing Assembly, Order: J802695

1шт.

Consists Of Refs. 6-12

1шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

3шт.

8

J532196

SPACER,9.38mm ID x 16.03mm OD x 19mm L

1шт.

9

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

10

J533328

SUPPORT

Bracket

1шт.

11

NSS

NOT SOLD SEPARAT

Housing

1шт.

12

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.
