1
NSS
NOT SOLD SEPARAT

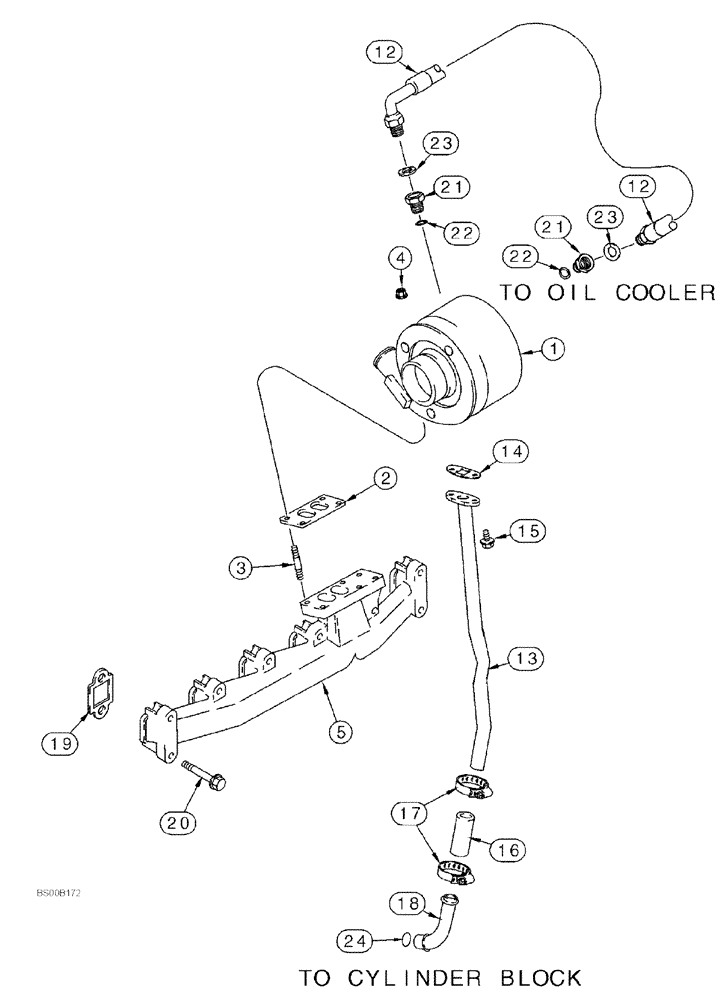

Turbocharger
1шт.
See Fig. 03-012
1шт.
2
J919369
GASKET,0.5mm Thk
Mounting
1шт.
3
J818823
STUD
4шт.
4
J818824
FLANGE NUT
Flange, M10
4шт.
5
J931747
MANIFOLD
1шт.
12
J918562
HOSE
538 MM (21-1/4 In)
1шт.
13
J934093
TUBE
1шт.
14
J937706
GASKET,0.79mm Thk
Mounting
1шт.
15
845-8020
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
2шт.
16
J286499
HOSE
76 MM (3 In)
1шт.
17
87016721
HOSE CLAMP,17.5mm - 31.7mm
2шт.
18
J931973
TUBE,0.875" OD
1шт.
19
J927154
GASKET,0.38mm Thk
exhaust manifold
6шт.
20
J901448
FLANGE BOLT,Hex, M10 x 65mm
12шт.
21
J919687
HYD CONNECTOR
Adapter
2шт.
Includes Ref. 22
1шт.
22
238-5013
O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro
2шт.
23
86637735
SEAL,9.53mm ID x 13.97mm OD
3/8 Tube, Fl
2шт.
24
238-7018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro
1шт.
