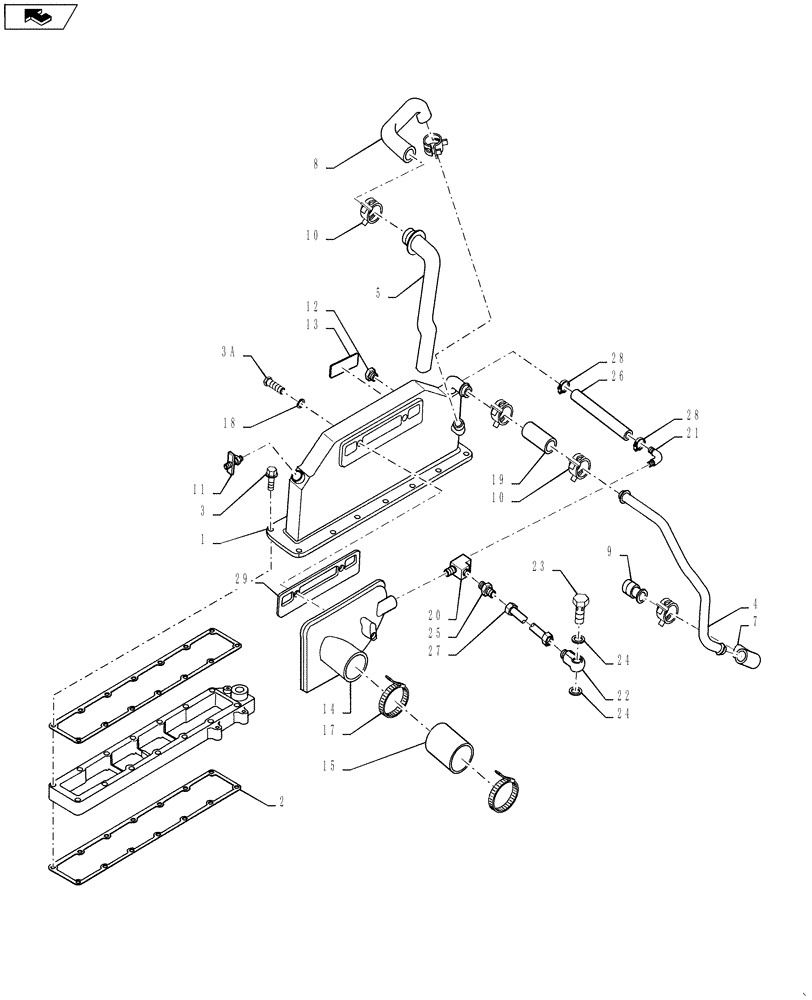

Запчасти Case IH SPX3200 (03-008) - MANIFOLDS (01) - ENGINE

1

J928503

AFTERCOOLER

1шт.

2

J938152

MANIFOLD GASKET

Mounting

1шт.

3

J930837

FLANGE BOLT,Hex, M8 x 1.25 x 50mm

Bolt, Flange

10шт.

3a

845-10075

SCREW

M8 X 75 Hex Flange

2шт.

4

J927956

TUBE,19.05 mm OD x 473.6 mm L

1шт.

5

J926446

TUBE,19.05 mm OD x 154.6 mm L

1шт.

7

J918607

HOSE,43.20 mm

1шт.

8

J928492

TUBE

Hose

1шт.

9

J907167

SPLINED COUPLING

1шт.

10

J937613

HOSE CLAMP

6шт.

11

J909394

COCK, DRAIN

Valve

1шт.

12

J906619

PLUG,1/8" - 27

pipe, 1/8-27 hex socket

2шт.

13

J910778

DECAL

Caution

1шт.

14

J928502

CONNECTOR, ELEC

CONNECTOR Air

1шт.

15

J916437

HOSE

Plain

1шт.

18

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

19

J918611

HOSE,18.50 mm ID x 63.00 mm

Plain

1шт.

20

J930789

TEE

1/8 x 1/8 x 1/8 pipe

1шт.

21

86625232

FITTING,45 Degree, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

22

J919644

FITTING

Connector, Banjo

1шт.

23

J903035

BANJO BOLT

Screw

1шт.

24

J935171

SEALING WASHER

12 MM

2шт.

25

J920803

CONNECTOR, ELEC

CONNECTOR

1шт.

26

J925438

HOSE,130.00 mm

1шт.

27

J934607

TUBE,6.35 mm OD x 506 mm L

1шт.

28

82039341

CLAMP,12mm - 22mm

#4, 0.25/0.62 Type M Worm

2шт.

29

J930426

GASKET

Air Crossover

1шт.
