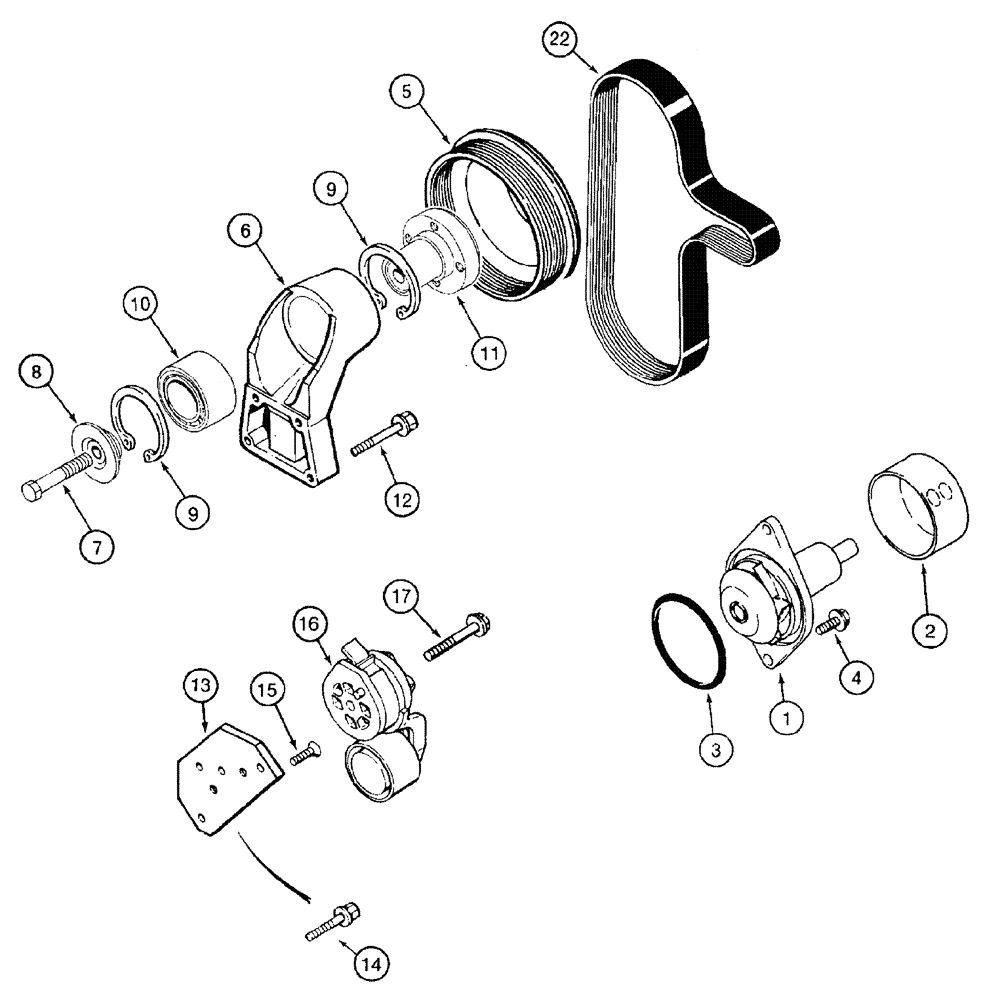

Запчасти Case IH SPX3200 (03-006) - WATER PUMP (01) - ENGINE

J286277

PUMP, WATER

Kit

1шт.

Consists Of Refs. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

SPX3200 6/01 to 12/04

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914461

PULLEY

1шт.

6

J911922

SUPPORT ASSY.

1шт.

Consists Of Refs. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 X 70

1шт.

8

J923044

RETAINER

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

13

J925275

SUPPORT

Bracket

1шт.

14

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

1шт.

15

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

2шт.

16

J936203

BELT TENSIONER

1шт.

17

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

1шт.

22

J911566

V-BELT,27.92mm W x 1612.9mm L, 8 Ribs

1шт.
