Запчасти Case IH SPX3200 (03-005) - A/C COMPRESSOR ASSEMBLY (01) - ENGINE

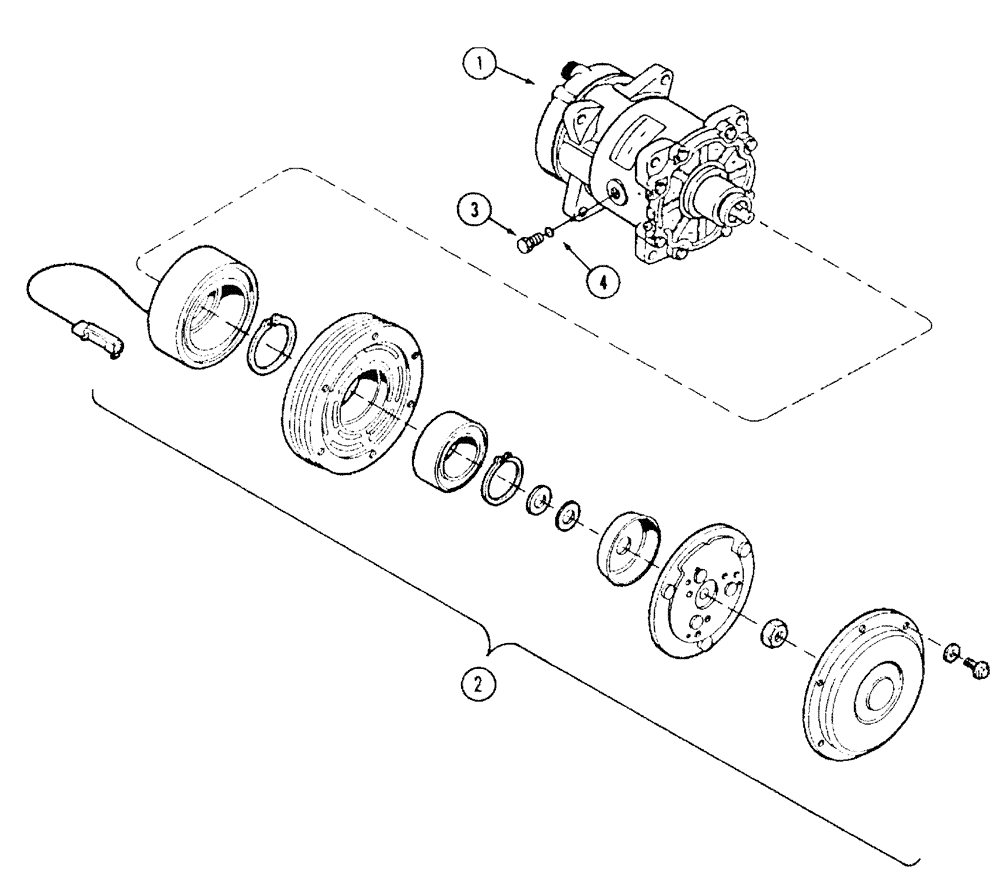

Схема запчастей Case IH SPX3200 - (03-005) - A/C COMPRESSOR ASSEMBLY (01) - ENGINE
2
3
1
4

Артикул

Название

Примечание

Количество

1

1999755C3

COMPRESSOR

assembly, air conditioning, 12V double groove

1шт.

Consists Of Refs. 2-4

1шт.

1

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

1

86993462R

REMAN-COMPRESSOR

SPX3200 (6/01-12/04); Reman For New P/N 1999755C3

1шт.

1

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

1

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

2

135324A1

CLUTCH

Assembly

1шт.

3

A49667

PLUG

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 id x 1/16

1шт.

Выбрано товаров: 11
