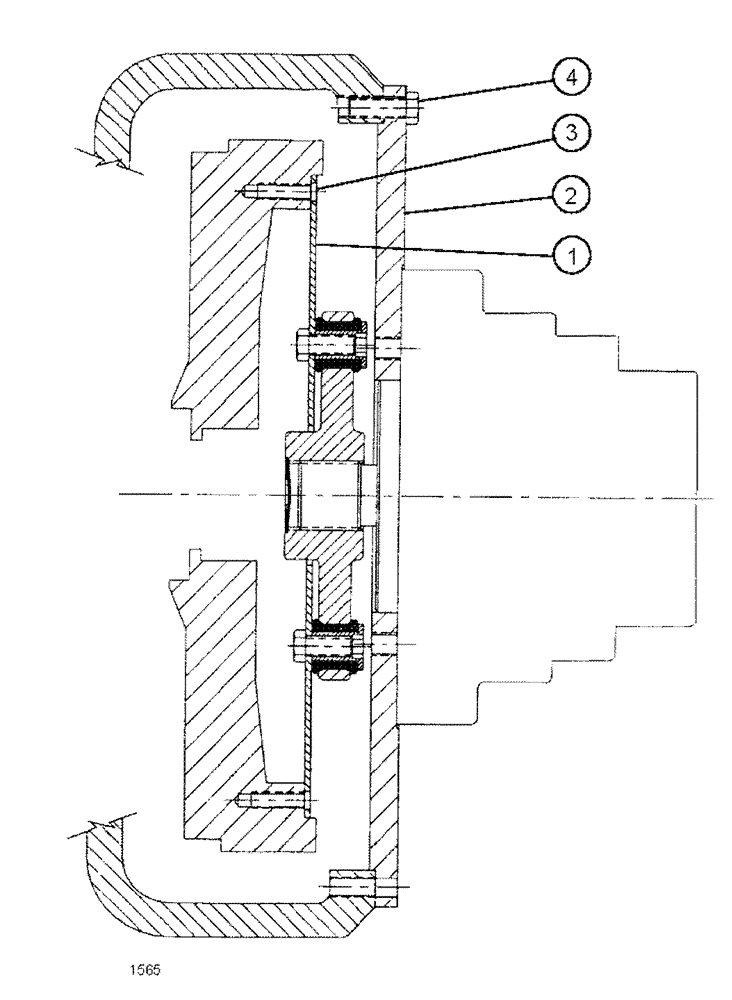

Запчасти Case IH SPX3200 (03-003) - FLYWHEEL COUPLER ASSEMBLY (01) - ENGINE

BN25680

COUPLING

Flywheel & Mount Plate Assembly

1шт.

1

BN309955

FLYWHEEL

Plate/Coupler Assembly, Pump Mount

1шт.

Includes Refs. 1 And 2

1шт.

2

BN309956

PLATE

pump mount

1шт.

3

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

8шт.

Plate-Pump Mount-Flywheel

1шт.

4

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

BN300499

WASHER,M10, 10.9

2шт.

Associated Part Of M10-1.5X30, HH, 8.8, P/N 614-10030

1шт.

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

Associated Part Of M10-1.5X30, HH, 8.8, P/N 614-10030

1шт.

BN311566

Hydrostat Linkage

1шт.

Not Shown

1шт.

See Fig. 03-040

1шт.
