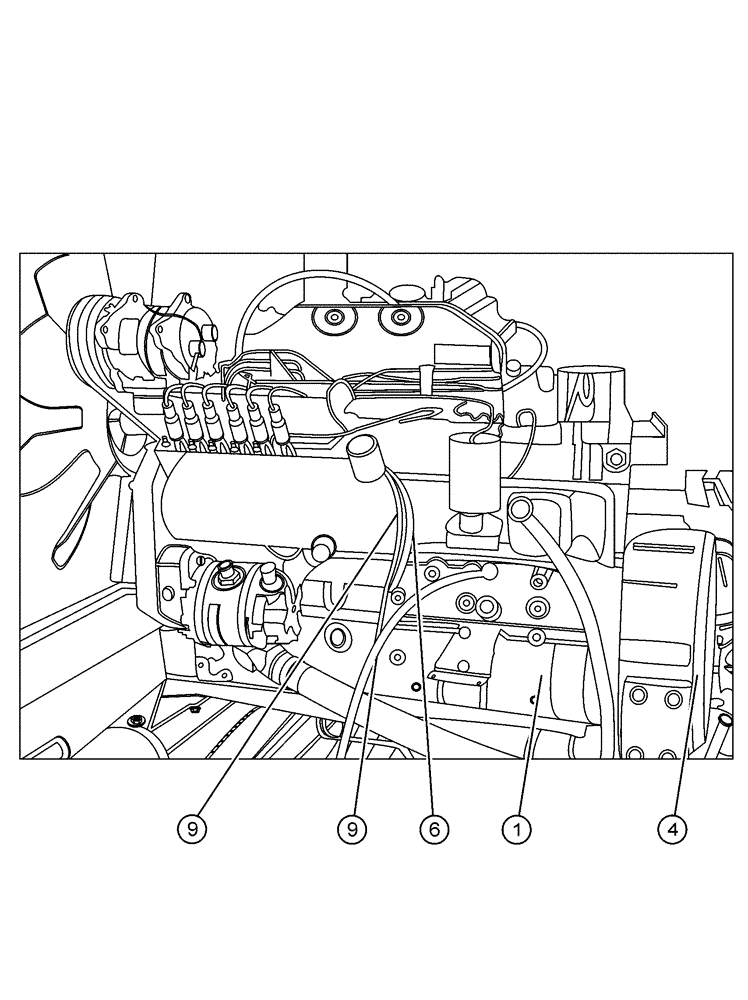

Запчасти Case IH SPX3200 (03-001[01]) - ENGINE GROUP (01) - ENGINE

1

BN310488

THROTTLE

ASSY, CBL

1шт.

See Fig. 03-039

1шт.

BN319759

1шт.

Not Shown

1шт.

BN319759

1шт.

See Fig. 03-031

1шт.

BN311139

FIP KIT

Hardware Hydrostat MTG. Group

1шт.

Not Shown

1шт.

See Fig. 03-038

1шт.

NS

NOT SERVICED

Radiator Package

1шт.

Not Shown

1шт.

NS

NOT SERVICED

Shroud Mounting Group

1шт.

Parts Of Radiator Package, P/N 86986340

1шт.

See Fig. 03-041

1шт.

BN321981

1шт.

Parts Of Radiator Package, P/N 86986340

1шт.

BN321981

1шт.

See Fig. 03-042

1шт.

BN322043

Radiator Components Group

1шт.

Parts Of Radiator Package, P/N 86986340

1шт.

See Fig. 03-043

1шт.

BN321951

Covers Group, Radiator

1шт.

Parts Of Radiator Package, P/N 86986340

1шт.

See Fig. 03-044

1шт.

BN322002

Grille/A\C Mount Group

1шт.

Parts Of Radiator Package, P/N 86986340

1шт.

See Fig. 03-045

1шт.

BN321945

Baffling Group, Radiator

1шт.

Parts Of Radiator Package, P/N 86986340

1шт.

BN323031

Exhaust Group Ref Only

1шт.

Not Shown

1шт.

BN311178

Muffler ASSY

1шт.

Parts Of Exhaust Group, P/N BN323031

1шт.

See Fig. 03-003

1шт.

BN321983

Heat Shield, Group

1шт.

Parts Of Exhaust Group, P/N BN323031

1шт.

See Fig. 03-034

1шт.

BN314582

PACKING

Engine Package Ref Only

1шт.

2

BN315577

Package Alternator

1шт.

See Fig. 03-030

1шт.

3

BN311554

ENGINE

STARTER MOTOR, w/hardware

1шт.

See Fig. 03-002

1шт.

4

BN311596

Flywheel Coupler W/Hardware

1шт.

See Fig. 03-003

1шт.

BN314934

ENGINE

CDC5.9L-200Hp Assembly

1шт.

Parts Of Flywheel Coupler W/Hardware, P/N BN311596

1шт.

362559A2

ENGINE ASSEMBLY

ENGINE ASSY CDC (6TA-590) 200 Hp

1шт.

Parts Of Flywheel Coupler W/Hardware, P/N BN311596

1шт.

BN314986

TEMPERATURE SENDER

Engine Service Items

1шт.

Parts Of Flywheel Coupler W/Hardware, P/N BN311596

1шт.

5

326347A1

TEMPERATURE SENDER

temperature 1/2-14 NPTF

1шт.

6

BN319998

SENDER UNIT

oil pressure

1шт.

BN310705

AIR CONDITIONER

Group

1шт.

Not Shown

1шт.

See Fig. 02-004

1шт.

BN314933

HARNESS

Engine Elec. Group

1шт.

BN311569

Package Battery Assembly

1шт.

Parts Of Engine Elec. Group, P/N BN314933

1шт.

See Fig. 03-037

1шт.

7

BN310903

MOUNTING PLATE

Solenoid, W/Shield

1шт.

See Fig. 03-036

1шт.

8

BN322891

WIRE HARNESS

CDC 200 Engine

1шт.

BN314936

HOSE, BULK

HOSE, METERS Fuel Delivery System

1шт.

Not Shown

1шт.

See Fig. 03-026

1шт.

BN313523

SLEEVE

hose, nylon, 6"

1шт.

BN320236

Package Hardware, Fuel Filter MTG.

1шт.

See Fig. 03-047

1шт.

9

BN318839

FUEL HOSE,9.53 mm ID x 3937.00 mm, SAE 30R6, SAE 30R7

fuel 3/8" x 155"

2шт.

BN75906

CLAMP

3/8 To 1/2 ADJ. Hose S

1шт.

BN76094

HOSE CLAMP

SS #M4

3шт.

J935740

BANJO BOLT

Connector

1шт.

BN322013

Mounts Group

1шт.

See Fig. 03-032

1шт.
