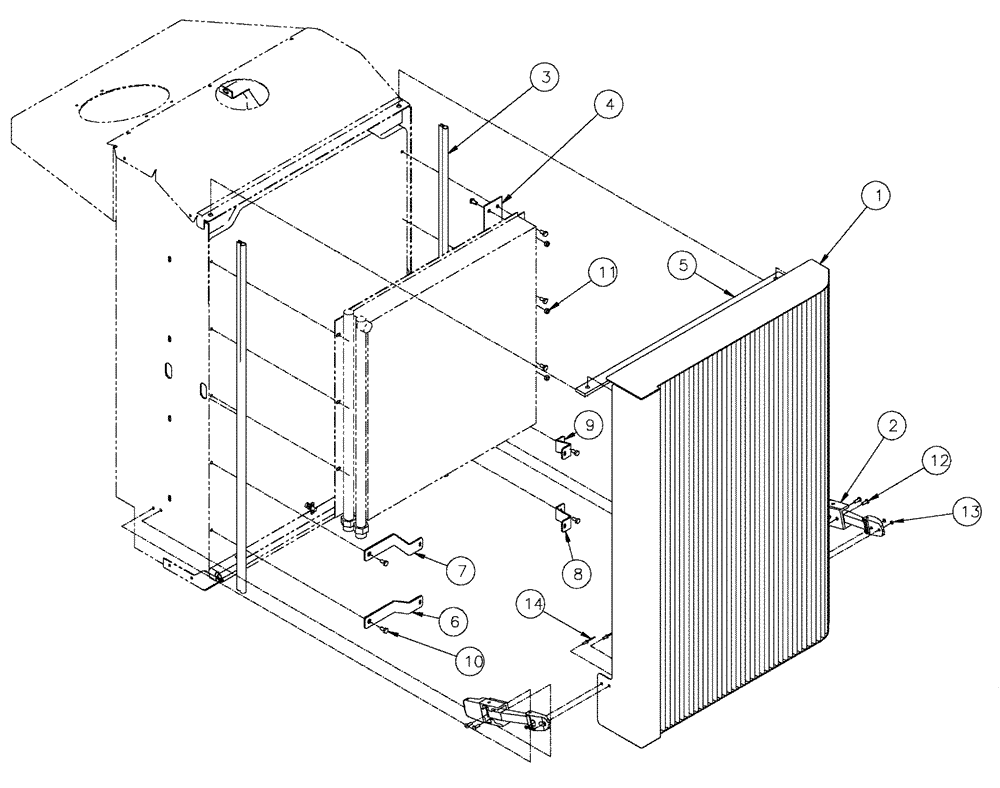

Запчасти Case IH SPX3200 (03-045) - GRILL MOUNT GROUP (00) - GENERAL

1

BN322001

GRILLE

Radiator

1шт.

2

BN310732

LATCH

Hood, 543

2шт.

3

BN316801

SEAL

Grille, Sides

2шт.

4

BN322008

SUPPORT

Oil Cooler

1шт.

5

BN322009

FOAM

Upper Grille

1шт.

6

BN322004

SUPPORT

Support, Lower Right

1шт.

7

BN322006

SUPPORT

Upper RH

1шт.

8

BN322005

BRACKET

Support, Lower Left

1шт.

9

BN322007

BRACKET

Support, Upper Left

1шт.

10

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

13шт.

11

86528579

NUT,M8 x 1.25

3шт.

12

BN311112

RIVET

1/4"-20 x .75, BHCS

4шт.

13

495-31019

WASHER,0.19" ID x 0.38" OD x 0.05" Thk

4шт.

14

151-573

RIVET,Pop, 4.75mm OD x 14.61mm L

4шт.
