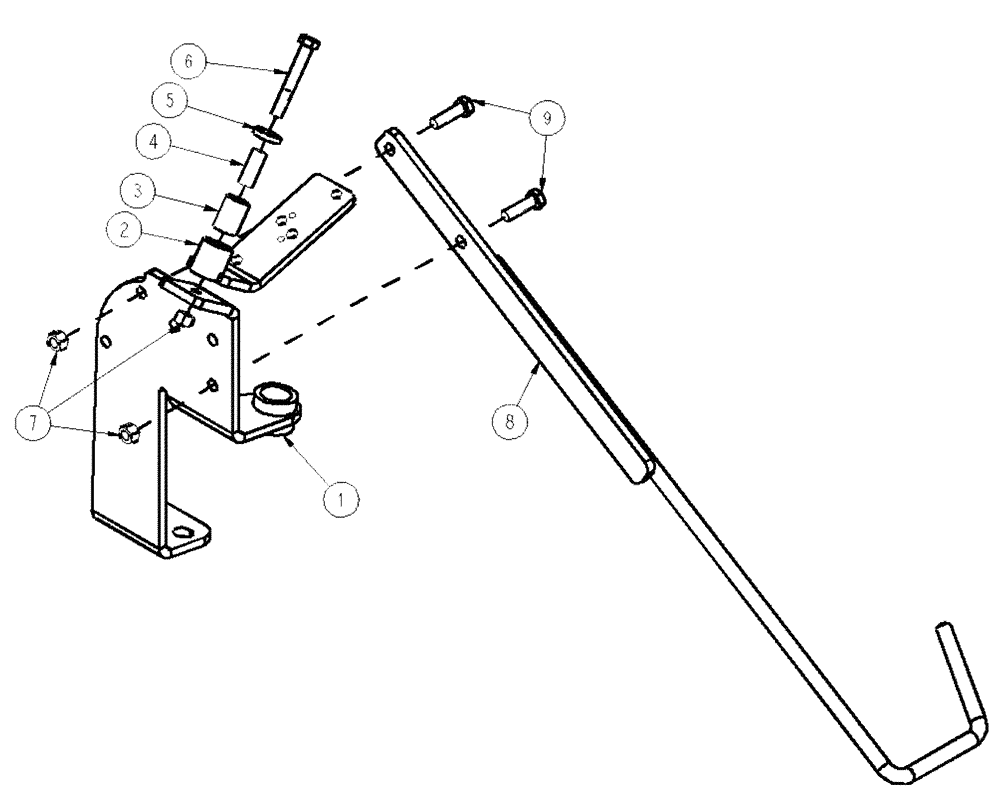

Запчасти Case IH SPX3200 (04-019) - HOSE PIVOT MOUNT ASSEMBLY - RR Suspension & Frame

1

87266388

PIVOT

LH

1шт.

2

BN313611

MOUNTING PARTS

Hose, RH

1шт.

3

BN313618

BUSHING,16.15mm ID x 26.42mm OD x 35.05mm L

UHMW

1шт.

4

BN313619

BUSHING,12.7mm ID x 16mm OD x 38.1mm L

Tube

1шт.

5

BN313639

WASHER

M12, 30MM OD

1шт.

6

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

1шт.

7

100038

NUT,M12 x 1.75, Cl 8

1шт.

8

BN325088

STOP

Hoses

1шт.

9

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.
