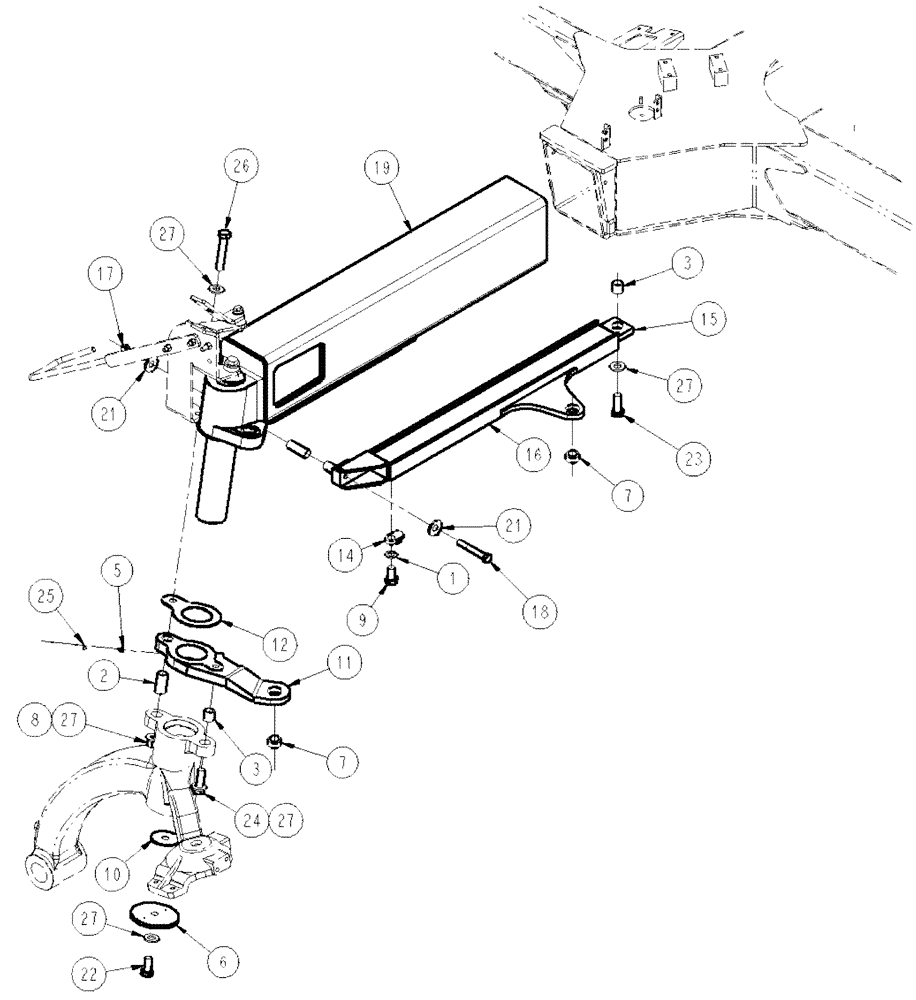

Запчасти Case IH SPX3200 (04-015) - AXLE ASSEMBLY-STEER LF Suspension & Frame

1

BN300528

LOCK WASHER

M20, 10.9

1шт.

2

BN301997

DOWEL

Hollow

1шт.

3

BN301998

DOWEL

Hollow

2шт.

5

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

1шт.

6

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

7

87267020

SPHERICAL BEARING,0.875" ID x 1.5625" OD x 0.703"

Spherical, 1.56" OD .875", Start Serial: 5762

2шт.

7

87267020

SPHERICAL BEARING,0.875" ID x 1.5625" OD x 0.703"

Spherical, 1.56" OD .875"

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

8

264031

NUT,M20 x 2.5, Cl 10

1шт.

9

627-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 10.9, Full Thd

M20-2.5 X 35, HH, 10.9

1шт.

10

BN312604

SPACER

Shim - Axle

1шт.

11

BN320022

STEERING ARM

LH Machine

1шт.

12

343539A1

THRUST WASHER

5.5 od x 3.39 x 9 d x R

1шт.

14

BN320759

STOP

tab, axle adjust

1шт.

15

87268923

BAR

Axle Slide

1шт.

16

BN322437

SLIDE

Axle ADJ, LF

1шт.

17

86512555

NUT,M16 x 2, Cl 10

1шт.

18

84036080

BOLT,Hex, M16 x 110mm, Cl 10.9

1шт.

19

86986455

AXLE

LH, With Thrust Washer

1шт.

21

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

2шт.

22

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

1шт.

23

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.

24

86639154

BOLT,Hex, M20 x 65mm, Cl 10.9

1шт.

25

BN69951

CAP

Grease

1шт.

26

86508350

BOLT,Hex, M20 x 110mm, Cl 10.9

1шт.

27

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

5шт.
