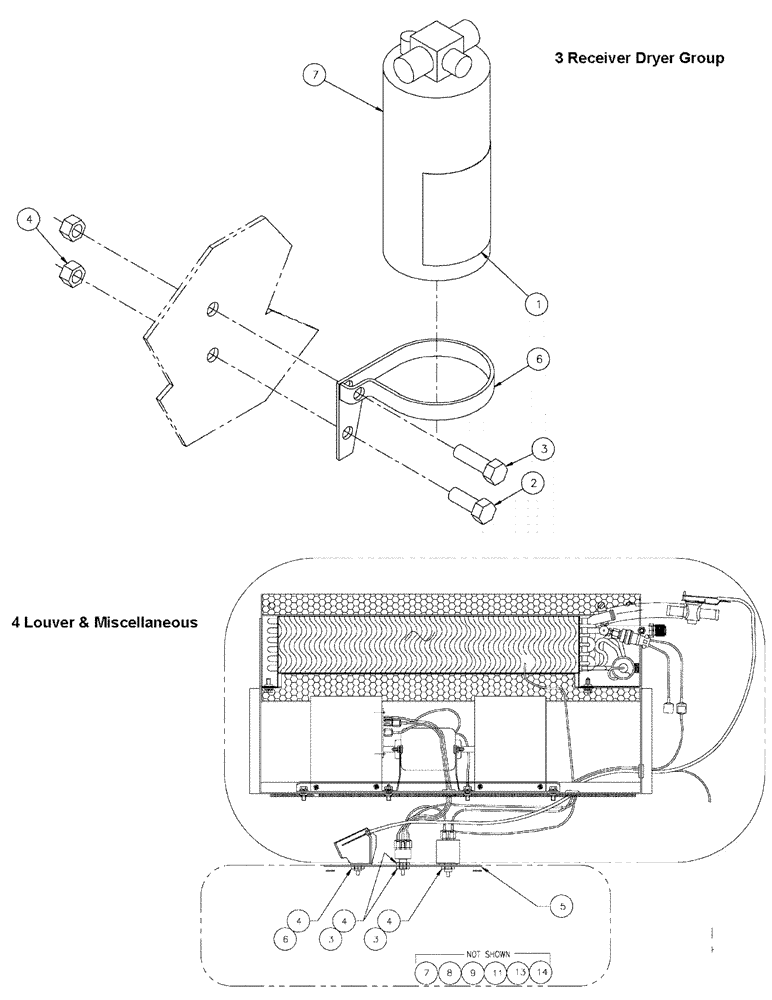

Запчасти Case IH SPX3200 (02-004[02]) - AC PACKAGE Cab Exterior

3

BN317005

Dryer Group, Ref Only

1шт.

1

BN301704

DECAL

Charge With 134A Gas

1шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

4

88902

NUT,3/8"-16

2шт.

5

BN51142

CABLE TIE

CABLE STRAP Tie--.12-1.25 Bundle

5шт.

6

BN67726

CLAMP

Receiver Dryer

1шт.

7

BN67797

RECEIVER-DRYER

1шт.

4

BN311014

PACKAGE

Parts, Louver & MISC. Ref Only

1шт.

3

BN67731

NUT

Switch/Control Mtg.

3шт.

4

BN67740

KNOB

Control

3шт.

5

BN311018

PLATE

Control, W/Decal

1шт.

6

BN312683

NUT

Cable Control

1шт.

7

BN67735

VENT

Louver 1 1/4X4 1/2 Rect

4шт.

4

BN311014

PACKAGE

Parts, Louver & MISC Ref. Only

1шт.

3

BN67731

NUT

Switch/Control MTG.

3шт.

4

BN67740

KNOB

Control

3шт.

5

BN311018

PLATE

Control, W/Decal

1шт.

6

BN312683

NUT

Cable Control

1шт.

7

BN67735

VENT

Louver, 1-1/4 x 4-1/2 RECT.

4шт.

8

BN67734

VENT

Louver, W/Hose Adapter

2шт.

9

BN67732

VENT

Louver, 3" DIA, Flat

2шт.

11

BN306271

TAPE

Tar, 10"

3шт.

13

BN311023

VENT

Louver, 4" DIA. W/Wire Clip

5шт.

14

BN312684

CLAMP

Hose, 2.12" To 4"

4шт.
