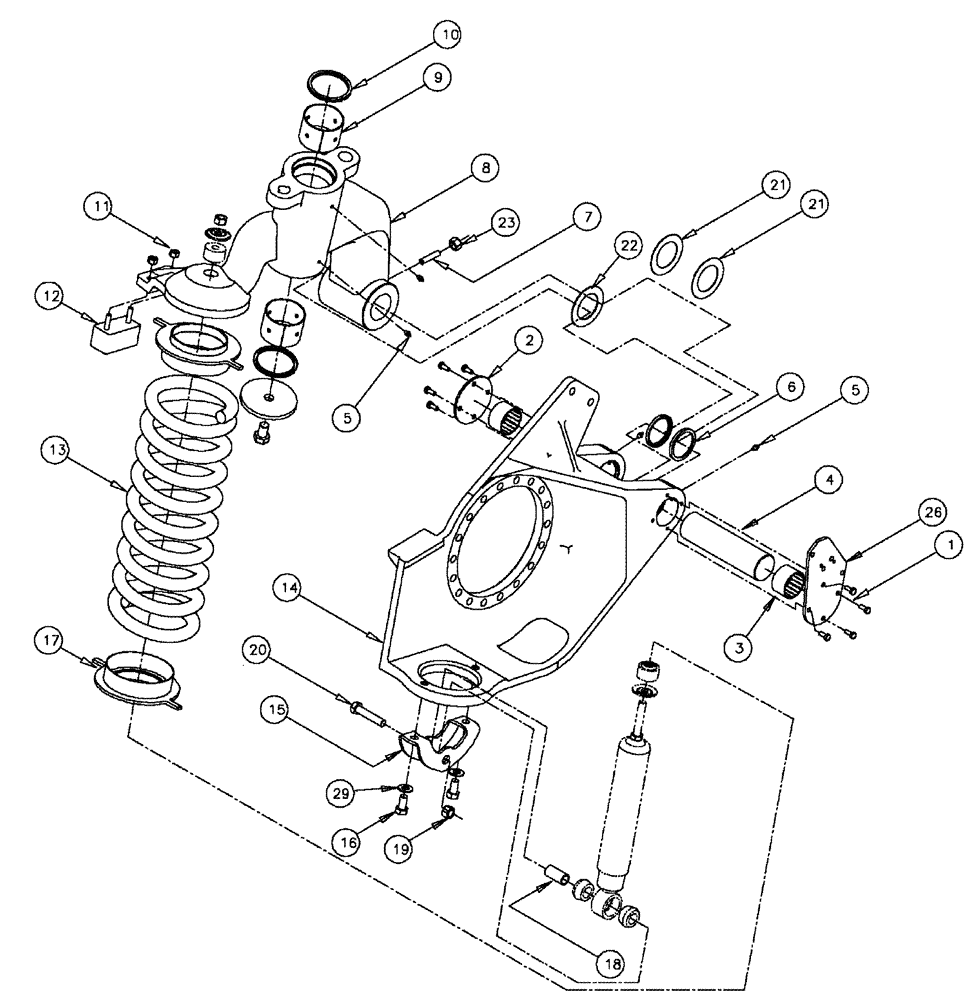

Запчасти Case IH SPX3200 (04-013) - STRUT ASSEMBLY - LEFT Suspension & Frame

1

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

2

BN302045

CAP

1шт.

3

87266251

BEARING LINER

Garlock

2шт.

4

BN302046

SHAFT

Lower, Strut

1шт.

5

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

4шт.

6

BN302044

SEAL,63.5mm ID x 76.2mm OD x 6.35mm Thk

Lower

2шт.

7

BN321041

SET SCREW

M12 x 55, 1.75 Cup Point

1шт.

8

BN300989

ARM ASSY.

Suspension Upper LH

1шт.

9

BN302041

SLEEVE

Bearing

2шт.

10

BN302040

SEAL

2шт.

11

BN305104

FLANGE NUT

3/8-16, FLN, G8

2шт.

12

BN306889

BUMPER

Jounce, 2.5 X 4.5 X 1.5

1шт.

13

BN314705

COIL SPRING

Suspension

1шт.

14

BN300991

HOUSING

Trailing Link, LH

1шт.

15

BN302031

MOUNTING PARTS

Shock, Lower

1шт.

16

86509867

BOLT,Hex Flg, M16 x 40mm

2шт.

17

BN316108

GUIDE

Adaptor, Spring

2шт.

18

87269215

SPACER

Shock, Suspension, Start Serial: 6223

1шт.

18

87269215

SPACER

Shock, Suspension

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

19

380424

NUT,M20 x 2.5, Cl 8

1шт.

20

87269216

BOLT

Shock, M20-2.5, DOR, Start Serial: 6223

1шт.

20

412346

BOLT,Hex, M20 x 2.5 x 90mm, Cl 8.8

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

21

BN302047

SHIM,64mm ID x 98.3mm OD x 1.44mm Thk

Machine Bushing, Wide, 2.5" id x 3.87" od x 18 ga

2шт.

22

BN302048

SHIM,64.01mm ID x 98.55mm OD x 2.55mm Thk

3.88" od x 2.52 id x 14 GA

1шт.

23

100038

NUT,M12 x 1.75, Cl 8

1шт.

26

BN306819

CAP

Dust, Suspension

1шт.

29

BN300501

WASHER

M16, FW, 10.9

2шт.
