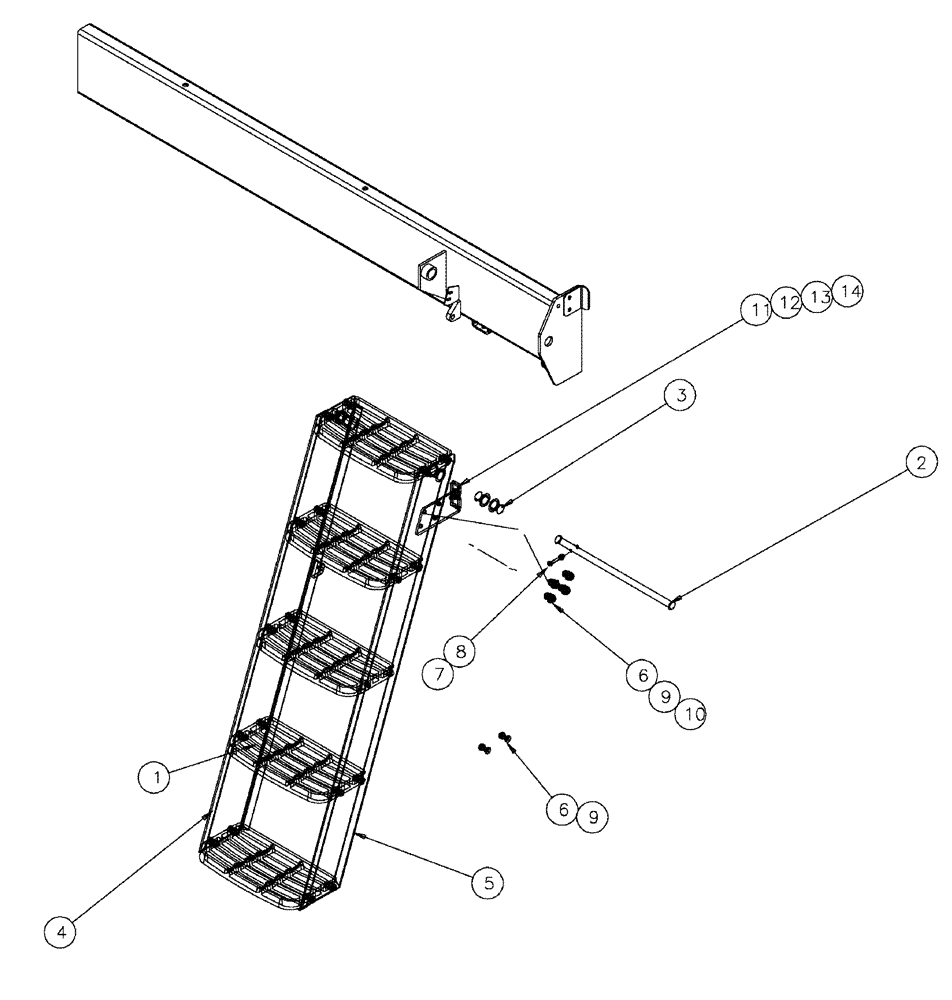

Запчасти Case IH SPX3200 (04-009) - LADDER, ACCESS LH Suspension & Frame

1

257375A1

STEP

cast alum tractor lower

5шт.

2

BN320322

PIN,25.4mm OD x 444mm L

Ladder Pivot

1шт.

3

BN321159

BUSHING,25.44mm ID x 27.77mm OD x 26.54mm L

4шт.

4

342269A1

BRACKET, SUPPORTING

mount, ladder steps

1шт.

5

342268A1

BRACKET, SUPPORTING

mount, ladder steps

1шт.

6

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

24шт.

7

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

8

86528579

NUT,M8 x 1.25

1шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

24шт.

10

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

11

87268758

STOP

Ladder

1шт.

12

BN320307

PAD

Ladder Stop

1шт.

13

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

1шт.

14

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

1шт.
