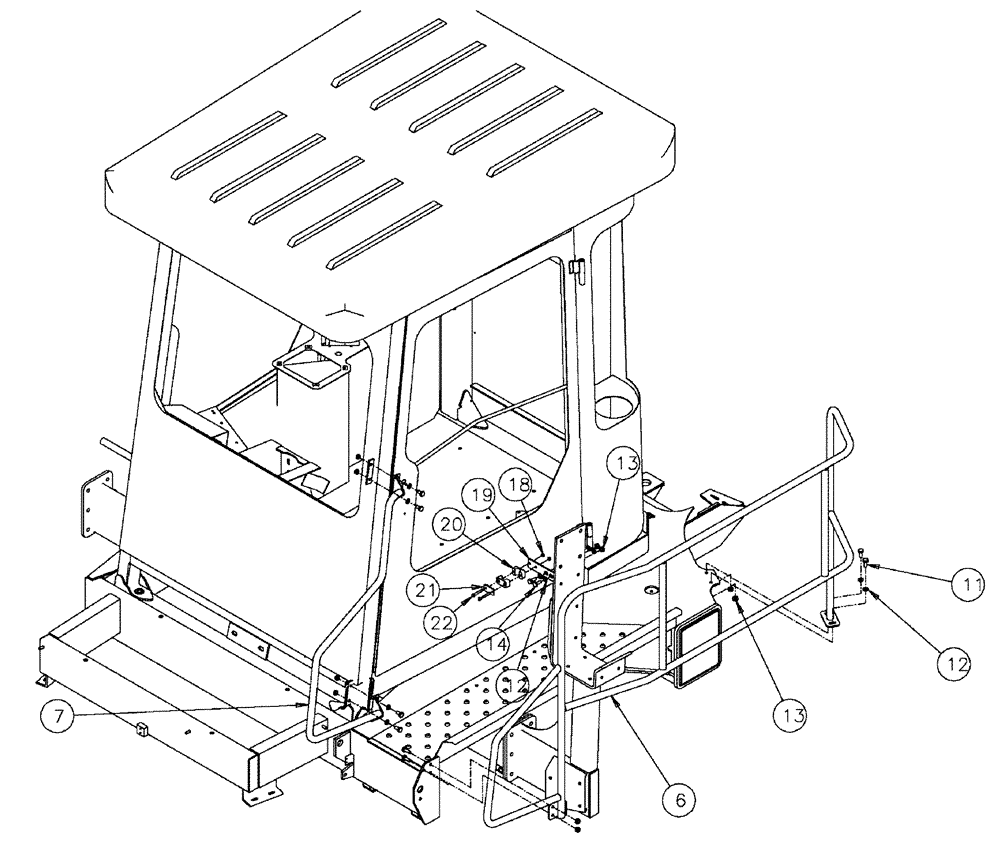

Запчасти Case IH SPX3200 (04-008) - HANDRAIL GROUP, LH Suspension & Frame

6

87270372

HANDRAIL

1шт.

7

BN67722

HANDLE

Grab (Front Ladder)

1шт.

11

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

12

BN300499

WASHER,M10, 10.9

10шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

10шт.

14

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

18

280129

NUT,1/4"-20

2шт.

19

BN319404

SUPPORT

Bracket

1шт.

20

BN307080

CLAMP

Pair-1 "Tube

1шт.

21

BN307081

PLATE

Top, Clamp, 1" Tube

1шт.

22

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.
