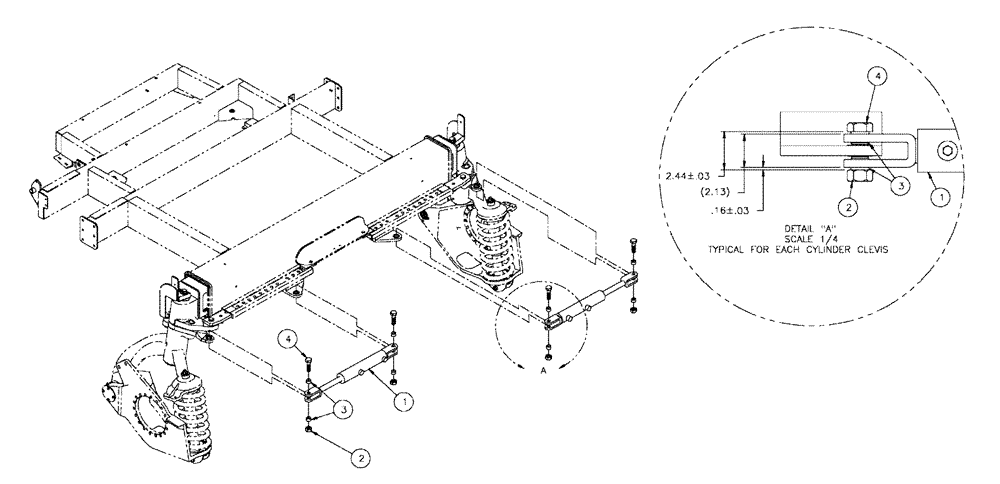

Запчасти Case IH SPX3200 (04-005) - STEERING CYLINDER GROUP, 2WS Suspension & Frame

1

BN321500

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 254mm Stroke

HYD. 2.50 X 10 X1.25

2шт.

See Fig. 07-008

1шт.

2

232-41414

NUT

7/8"-9 GR C 1-way, all metal

4шт.

3

87266977

BUSHING

Spring

8шт.

4

426-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8

4шт.
