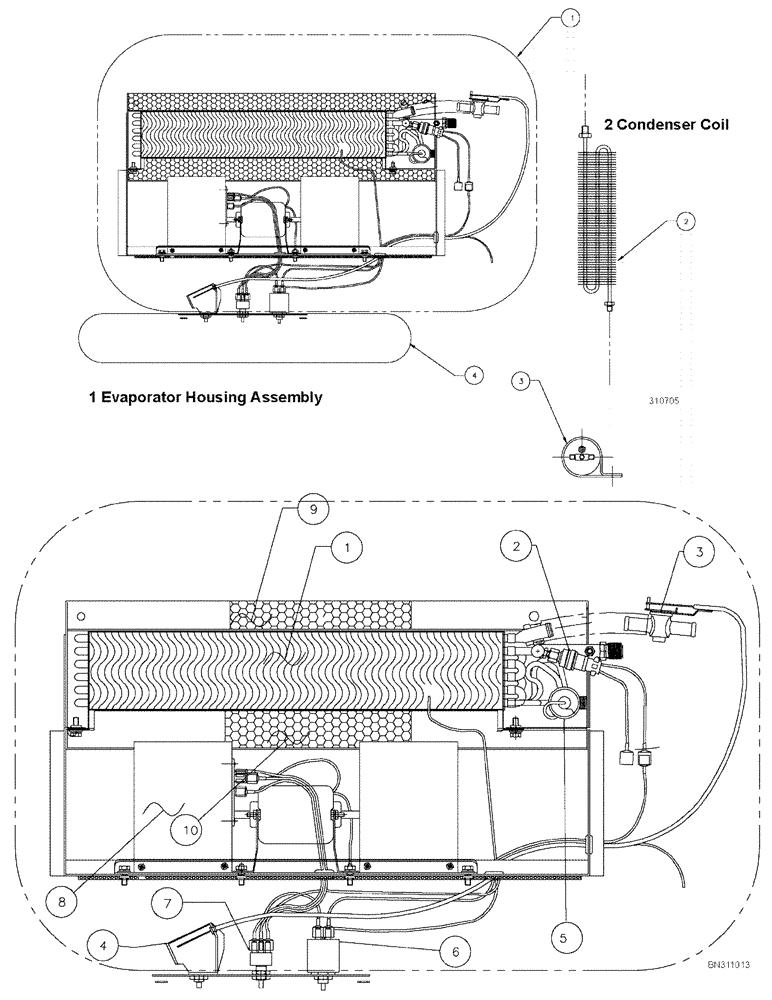

Запчасти Case IH SPX3200 (02-004[01]) - AC PACKAGE Cab Exterior

BN67795

HOSE

2шт.

BN67796

TUBE

Poly Loom Drain

3шт.

1

BN311013

HOUSING ASSY.

evaporator

1шт.

See Refs. 1 - 8 Below

1шт.

2

BN67785

CONDENSER

Coil

1шт.

3

BN317005

Receiver Dryer Group

1шт.

See Refs. 1 - 7 Below

1шт.

4

BN311014

PACKAGE

Parts Pkg.-Louver & Misc.

1шт.

See Refs. 3 - 14 Below

1шт.

1

BN311013

HOUSING ASSY.

evaporator

1шт.

1

BN311015

EVAPORATOR

Heater

1шт.

2

BN69702

PRESSURE SWITCH

Low

1шт.

3

BN69708

VALVE

Water, Inline

1шт.

4

BN311016

CABLE

Push Pull, Assembly

1шт.

5

BN69872

VALVE, THERMAL EXPAN,Air Conditioing

Expansion

1шт.

6

BN69703

SWITCH

Cold Control

1шт.

7

73107110

BLOWER SWITCH

3 Speed

1шт.

8

BN69704

BLOWER

12V

1шт.

9

87268348

FOAM

evaporator front

1шт.

10

87268349

FOAM

evaporator rear

1шт.
