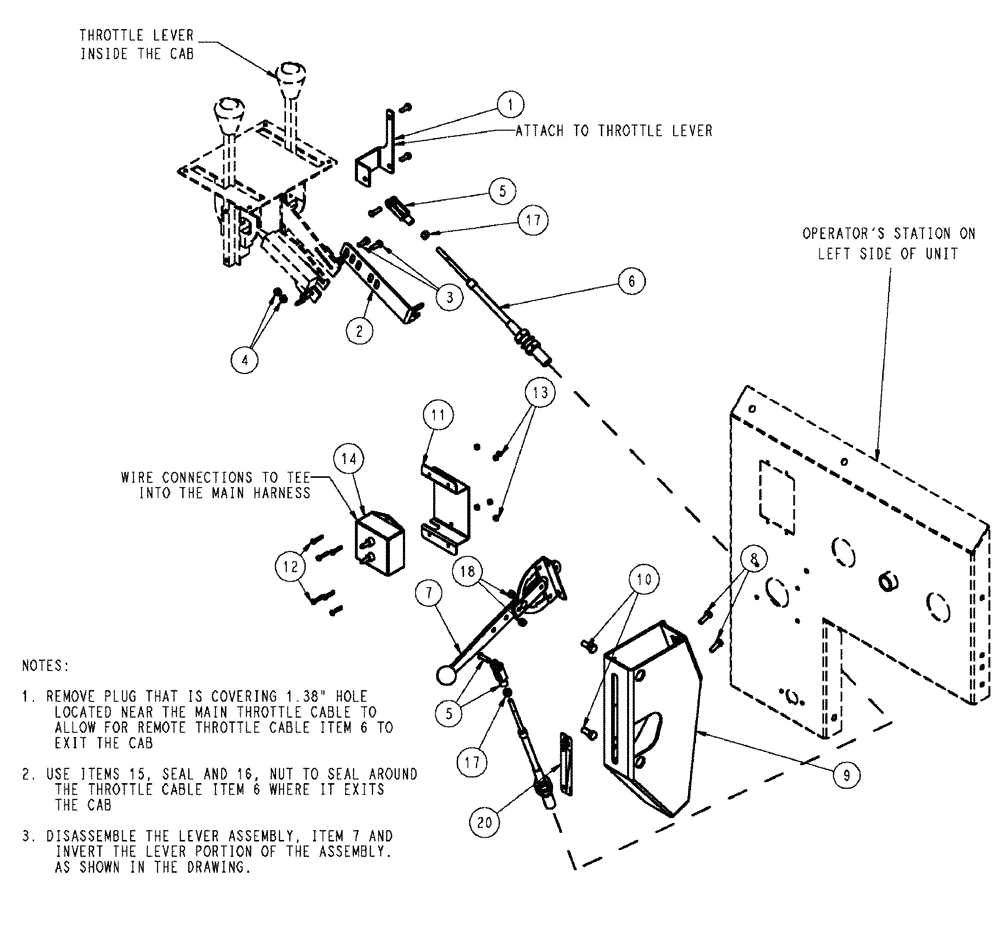

Запчасти Case IH SPX3200 (11-029) - REMOTE THROTTLE Options

1

87267138

BRACKET

External Throttle

1шт.

2

BN313945

MOUNTING PLATE

Cable, External Throttle, Inside

1шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

4

353308

NUT,M6 x 1.0, Cl 8

2шт.

5

BN29258

CLEVIS

Assembly With Pin

2шт.

6

87267139

CABLE

Control, 4" Travel, 202"

1шт.

7

BN316025

LEVER

Friction

1шт.

8

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

9

87267140

MOUNTING PLATE

Remote Throttle

1шт.

10

BN50476

BOLT,5/16"-18 x 0.75", Stainless

2шт.

11

87266393

MOUNTING PLATE

Switch Assembly

1шт.

12

BN309651

SCREW,Hex, M4 x 20mm, SST

M4 - .7 X 20 HH, SS

6шт.

13

BN309652

NUT

M4-.7, Hex, SS

6шт.

14

BN315735

THROTTLE

External, Electrical

1шт.

15

BN318043

SEAL

Seal, Throttle Cable

1шт.

16

BN315736

LOCK NUT

Nylon - 1" NPT

1шт.

17

BN319397

LOCK NUT

1/4-28, NLN, G8

2шт.

18

BN55359

LOCK NUT,1/4"-20, SS

2шт.
