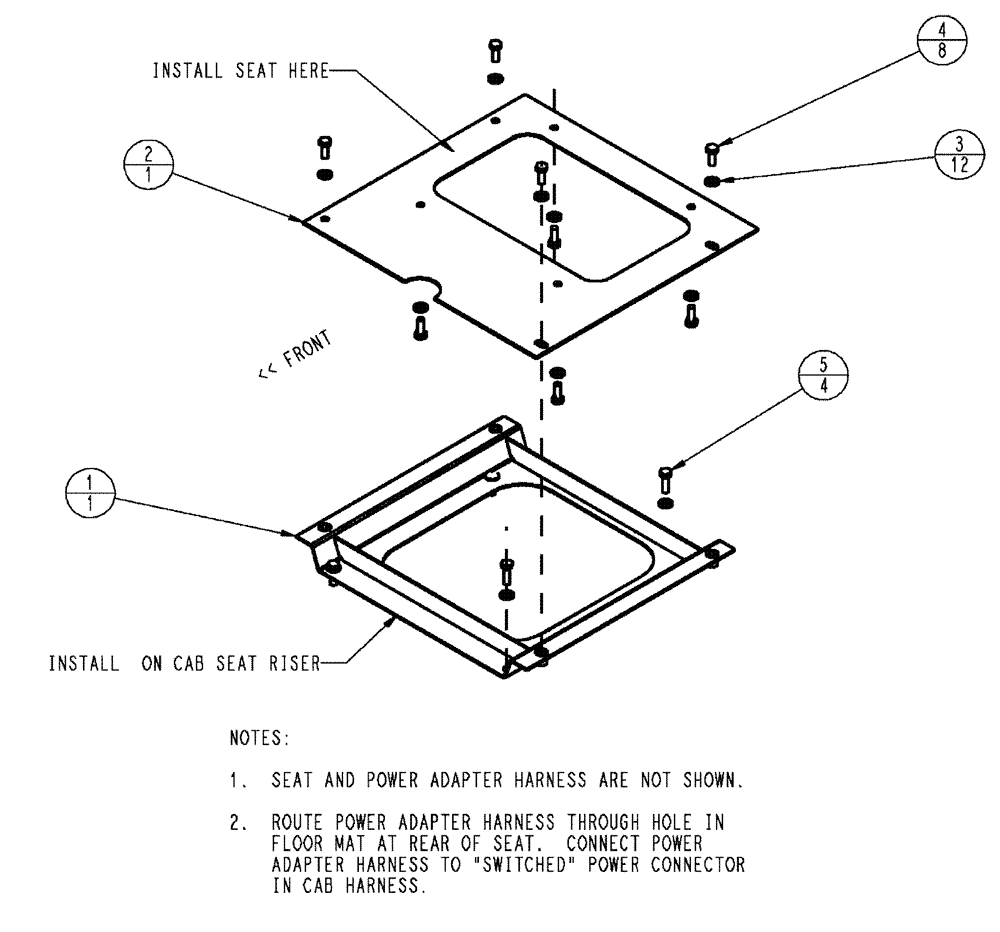

Запчасти Case IH SPX3200 (11-024) - AIR SEAT GROUP Options

1

87268217

ADAPTER

seat, Sears

1шт.

See Fig. 11-026

1шт.

2

87268222

ADAPTER

seat, Sears

1шт.

3

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

12шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

5

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

ns

87268224

WIRE HARNESS

Seat Power, Sears

1шт.

ns

86643596

SEAT ASSY.

With Swivel & Belt Assy

1шт.

See Fig. 11-025

1шт.
