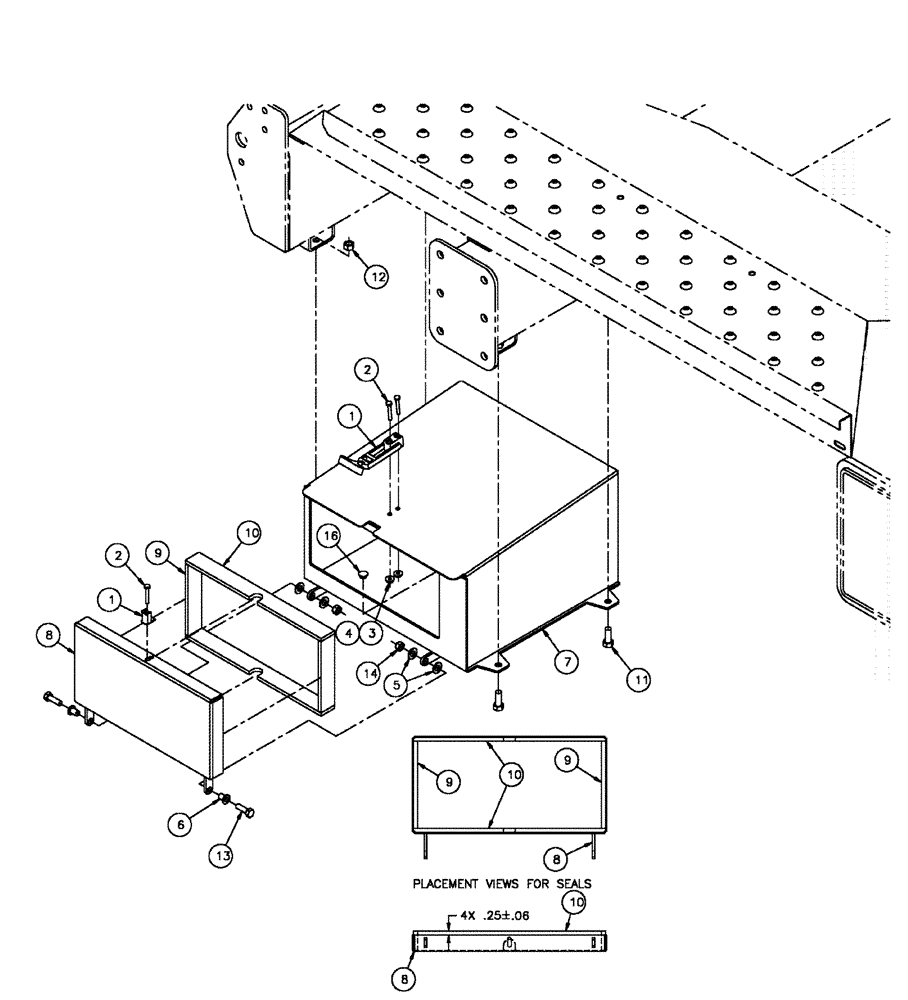

Запчасти Case IH SPX3200 (11-016) - TOOLBOX GROUP, FRONT LH Options

1

BN309337

LATCH

Flexible Draw

1шт.

2

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

3шт.

3

BN310265

WASHER

10, Stainless Steel

3шт.

4

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

3шт.

5

BN319150

WASHER

3/8, FW, Nylon

4шт.

6

BN319151

BUSHING

5/16, Shoulder, Nylon

2шт.

7

BN319162

TOOL BOX

LH Front

1шт.

8

BN319164

COVER ASSY

LH Toolbox

1шт.

9

BN319629

SEAL

Toolbox Cover, Foam

2шт.

10

BN319630

SEAL

Toolbox Cover, Foam

2шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

12

88902

NUT,3/8"-16

4шт.

13

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

14

280736

NUT,5/16"-18, GC

2шт.

16

BN319668

PLUG

7/16", Nylon

1шт.
