(11-010) - CHEMICAL INDUCTOR RINSE VALVE GROUP

Запчасти Case IH SPX3200 (11-010) - CHEMICAL INDUCTOR RINSE VALVE GROUP Options

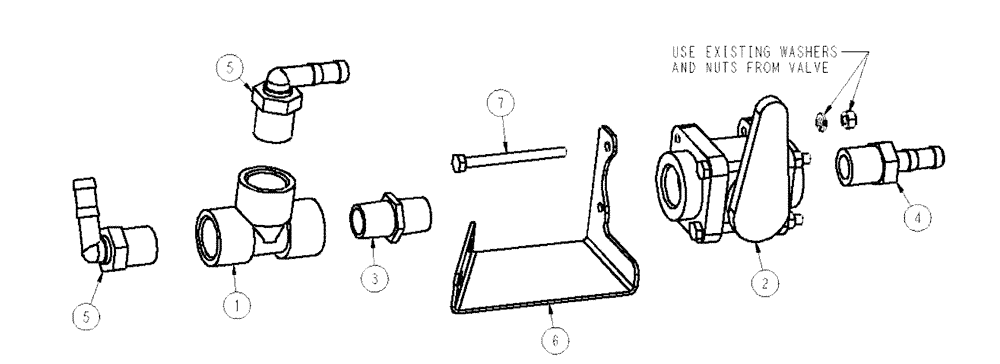

Схема запчастей Case IH SPX3200 - (11-010) - CHEMICAL INDUCTOR RINSE VALVE GROUP Options
3
7
5
5
2
1
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN73560

TEE

3/4" NPT, Poly

1шт.

2

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

3

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

4

BN73568

FITTING

3/4" NPT x 1/2" Hose Barb, Poly

1шт.

5

BN73578

FITTING

Barb, 3/4" NPT x 1/2HB, 90

2шт.

6

86986124

MOUNTING PLATE

Rinse Valve

1шт.

7

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

4шт.
