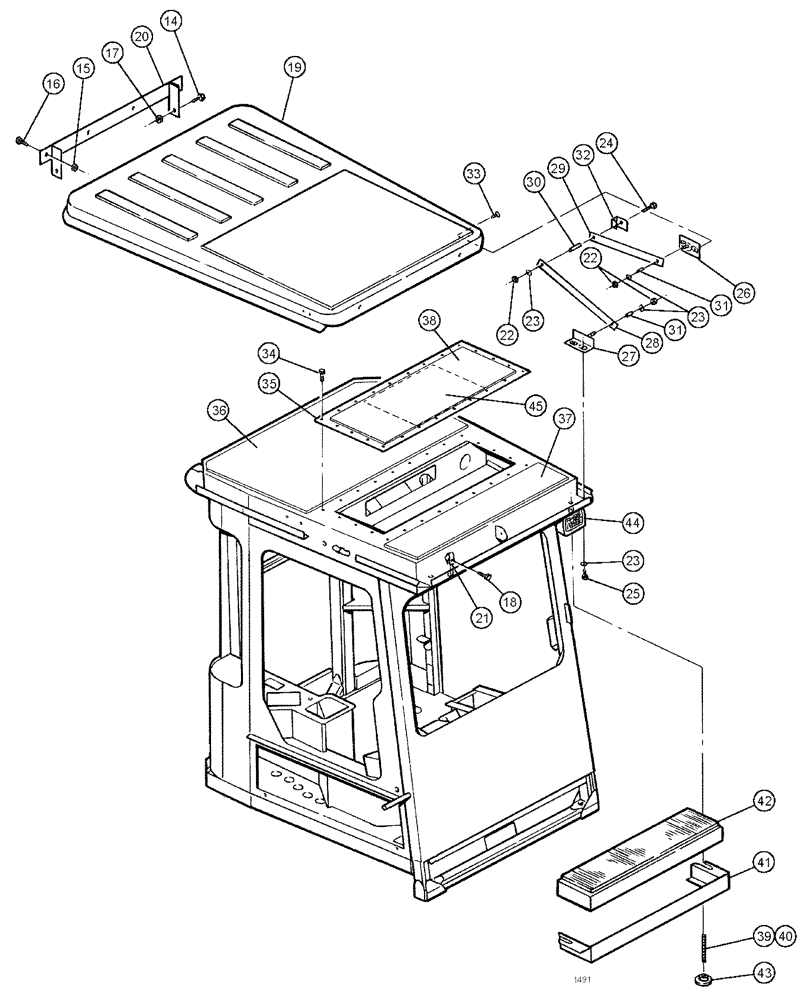

Запчасти Case IH SPX3200 (02-001) - ROOF Cab Exterior

14

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

15

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

16

BN50222

BOLT

5/16-18 X .75, TH, SS, PH

4шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

18

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

2шт.

19

BN311759

ROOF

Cab (Red)

1шт.

20

BN67226

HINGE

Half

1шт.

21

BN69828

NUT

U 3/8"-16

2шт.

23

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

8шт.

25

BN50205

BOLT

1/4"-20 x .625 TH, SS, Philips

2шт.

26

BN68325

PLATE

Upper

1шт.

27

BN68326

PLATE

Lower

1шт.

28

BN68327

SUPPORT

Brace Lower

1шт.

29

BN68328

SUPPORT

Brace Upper

1шт.

30

BN68329

BUSHING

1шт.

31

BN68330

BUSHING

2шт.

32

BN68331

STOP LOCK

1шт.

33

BN314570

BOLT

1/4-20 X 3/8, TH, SS, PHIL

2шт.

280129

NUT,1/4"-20

3шт.

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

1шт.

34

88814

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

28шт.

35

BN304231

PANEL

Access Panel, Roof

1шт.

BN300175

WASHER

3/8", G8

28шт.

Associated Part Of Access Panel, Roof, P/N BN304231

1шт.

BN304228

RUBBER SEAL

RUBBER SEAL 1/4 X 3/4 X 43.5

1шт.

Associated Part Of Access Panel, Roof, P/N BN304231

1шт.

BN304229

RUBBER SEAL

RUBBER SEAL 1/4 X 3/4 X 45.75

1шт.

Associated Part Of Access Panel, Roof, P/N BN304231

1шт.

BN304230

RUBBER SEAL

1/4 x 3/4 x 19

2шт.

Associated Part Of Access Panel, Roof, P/N BN304231

1шт.

36

BN304240

RUBBER INSULATOR

Cab Roof

1шт.

37

BN304239

RUBBER INSULATOR

Cab Roof

1шт.

38

BN304232

RUBBER INSULATOR

Access Panel

1шт.

39

BN22055

ROD

3/8"-16, x 2.38, SS, Threaded

2шт.

40

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

41

BN65271

RETAINER

Filter

1шт.

42

87267368

CAB FILTER,663mm x 152mm x 65mm, Charcoal

Charcoal, Panel, Start Serial: 5840

1шт.

87267368

CAB FILTER,663mm x 152mm x 65mm, Charcoal

Charcoal, Panel

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

43

BN65448

KNOB

3/8"-16 (F)

2шт.

BN50146

WASHER,3/8", Stainless

2шт.

44

BN66131

WORK LAMP,Halogen, 12V, 55W, Clear

Flood - Pedestal Mount

4шт.

BN300873

BULB

Halogen, H3 12 volt

1шт.

Service Parts For Ref. 44

1шт.

45

BN319432

FOAM

Roof Panel, Bottom

1шт.
