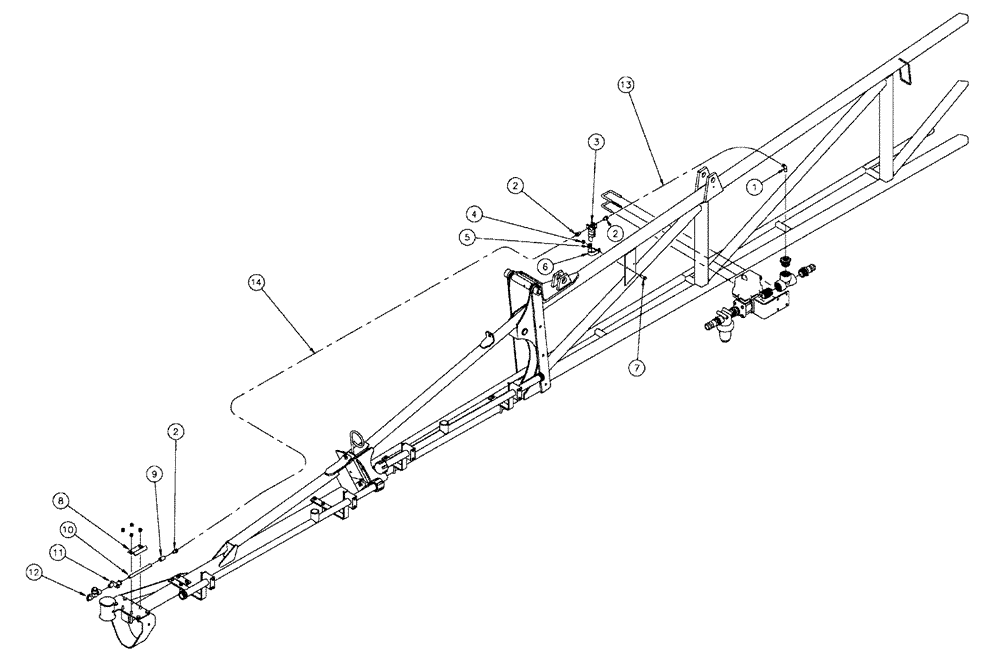

Запчасти Case IH SPX3200 (11-003) - FENCE ROW NOZZLE GROUP, 80, LEFT BOOM Options

1

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

2

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

3шт.

3

343778A1

SOLENOID

valve, 1/4" NPT

1шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.

5

BN50146

WASHER,3/8", Stainless

1шт.

6

BN570018

CLAMP

Vinyl Coated 1-7/16

1шт.

7

BN50254

BOLT,3/8"-16 x 1", Stainless

1шт.

8

86986105

CLAMP

Plate, Nozzle

1шт.

9

BN73015

COUPLING

1/4" NPT SS Full

1шт.

10

BN313361

NIPPLE,1/4" NPT x 6mm SS

NIPPLE

1шт.

11

BN313256

NOZZLE INJECTION

W/Swivel

1шт.

12

BN313255

NOZZLE INJECTION

W/Check Valve

1шт.

12a

BN74619

CAP

Service Part for Ref 12

1шт.

12b

BN69558

PLUG

Service Part for Ref 12

1шт.

13

BN322081

TUBE

Black, 3/8 X 160"

1шт.

14

BN322073

TUBE

Black, 3/8 X 36"

1шт.
