Запчасти Case IH SPX3200 (09-049) - FOAM DROP GROUP, LH-90 Liquid Plumbing

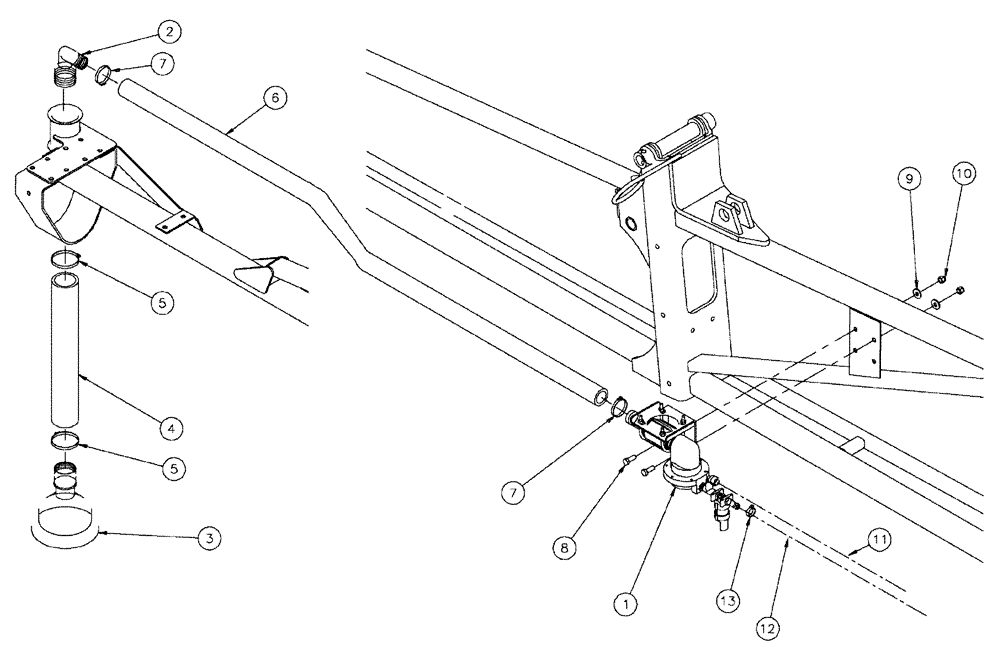

Схема запчастей Case IH SPX3200 - (09-049) - FOAM DROP GROUP, LH-90 Liquid Plumbing
5
11
7
10
4
13
6
9
8
3
12
1
7
5
2

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Chamber Group, LH Foam Mix

1шт.

See Fig. 09-043

1шт.

2

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1-1/4" Hose Barb, 90 DEG, Poly

1шт.

3

BN2403252

BELL

Foam Marker

1шт.

4

87266611

HOSE

Foam Drop, 2" x 16"

1шт.

5

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

2шт.

6

87268046

HOSE,31.75 mm ID x 227 mm

Type K

1шт.

7

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

8

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

9

BN50146

WASHER,3/8", Stainless

4шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

11

87268239

TUBE,0.375" DIA

Synflex, 3/8" x 33'

1шт.

12

87268240

HOSE,0.50" ID

EPDM

1шт.

13

BN324022

HOSE CLAMP

#8, 304 ss

1шт.

Выбрано товаров: 14
