Запчасти Case IH SPX3200 (09-043) - CHAMBER GROUP, LH FOAM MIX Liquid Plumbing

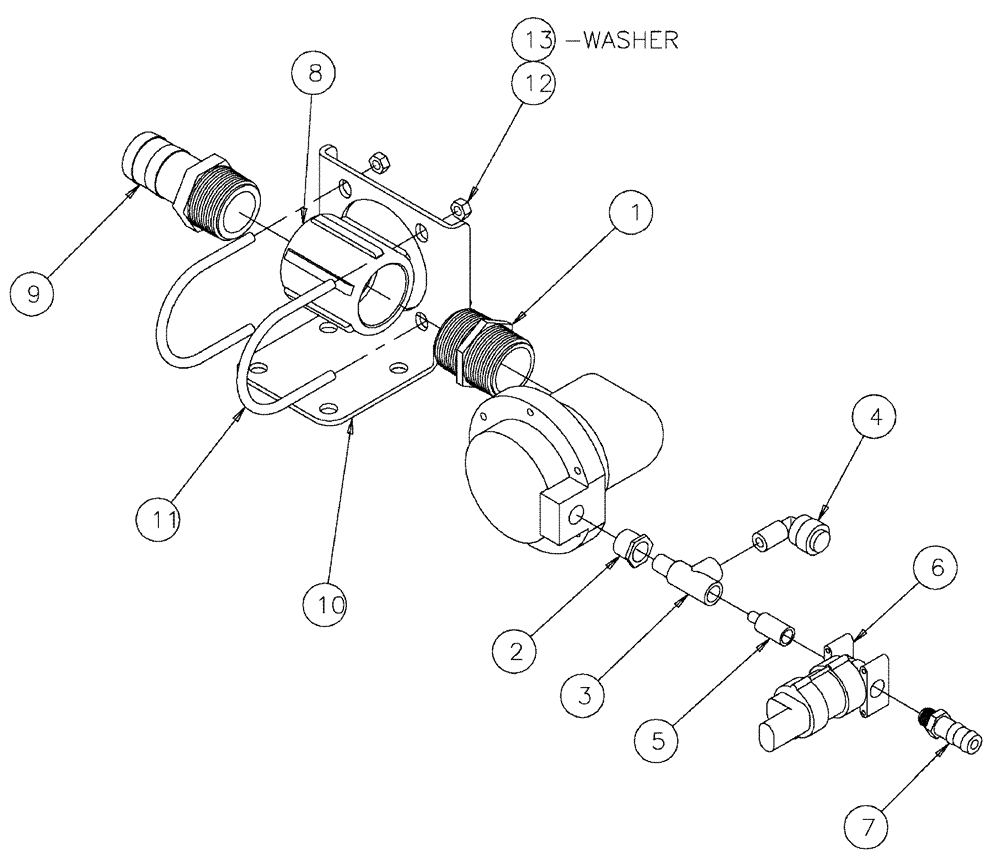

Схема запчастей Case IH SPX3200 - (09-043) - CHAMBER GROUP, LH FOAM MIX Liquid Plumbing
3
6
4
10
13
11
5
8
9
7
12
1
2

Артикул

Название

Примечание

Количество

1

BN307636

CHAMBER

Foam Mixing

1шт.

2

BN313188

BUSHING

3/8NPT-1/4NPT, SS

1шт.

3

BN313189

TEE

4-4-4, NPT, SS

1шт.

4

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

5

87269827

VENTURI

Foamer Assembly Poly, Start Serial: 6237

1шт.

n

BN322427

VENTURI

Foamer Assembly

1шт.

6

BN307938

VALVE

Solenoid, 1/4 NPT

1шт.

7

BN324008

FITTING

1/4" NPT x 1/2" Hose Barb, Poly

1шт.

8

BN305269

COUPLING

1-1/4" NPT, Poly

1шт.

9

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

10

87266740

PLATE

Foamer Chamber

1шт.

11

87266747

U-BOLT

1/4"-20 x 2.5 ID x 3"

2шт.

12

BN55359

LOCK NUT,1/4"-20, SS

4шт.

13

BN50138

WASHER,1/4", SS

4шт.

Выбрано товаров: 14
