(09-041) - SOLENOID GROUP, CENTER SECTION

Запчасти Case IH SPX3200 (09-041) - SOLENOID GROUP, CENTER SECTION Liquid Plumbing

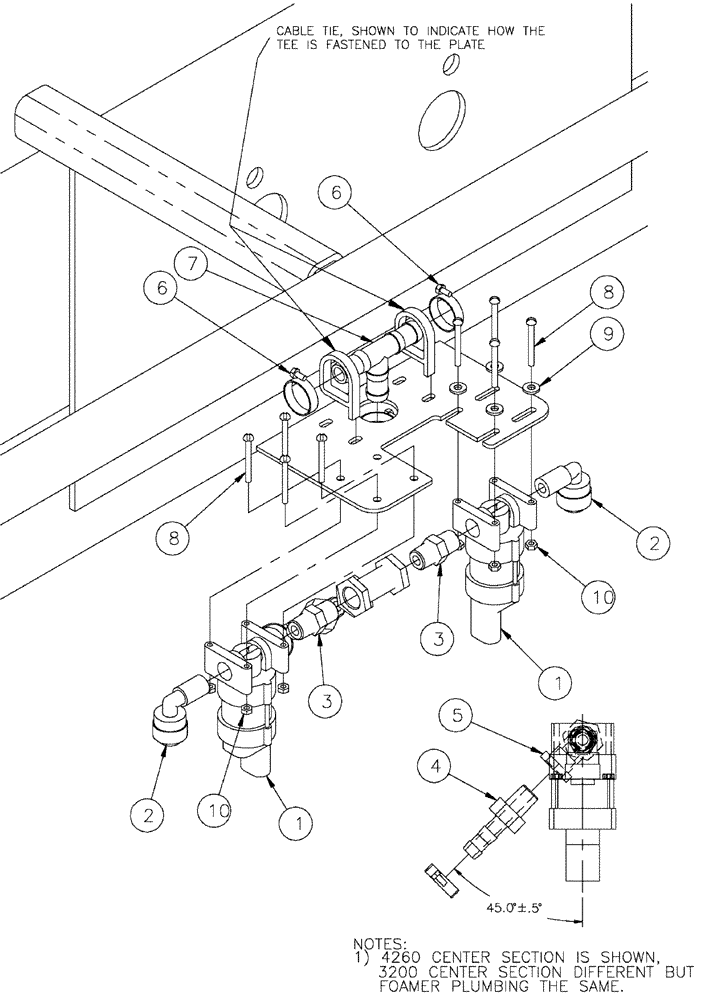

Схема запчастей Case IH SPX3200 - (09-041) - SOLENOID GROUP, CENTER SECTION Liquid Plumbing
5
6
4
10
7
1
10
8
9
2
3
6
2
3
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN307938

VALVE

Solenoid, 1/4 NPT

2шт.

2

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

3

86986808

NIPPLE

1/4" Short, Poly

2шт.

4

86986810

FITTING

Hosebarb, 3/8" X 1/4" NPT

1шт.

5

86986807

TEE

1/4" Poly

1шт.

6

BN324022

HOSE CLAMP

#8, Stainless Steel

4шт.

7

BN324009

TEE

All 1/2" HB, Poly

1шт.

8

BN317051

BOLT

6-32 X 1.25"

8шт.

9

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

4шт.

10

BN317053

LOCK NUT

6-32 nylon lock

8шт.
