Запчасти Case IH SPX3200 (09-040) - FOAMER AIR TANK GROUP Liquid Plumbing

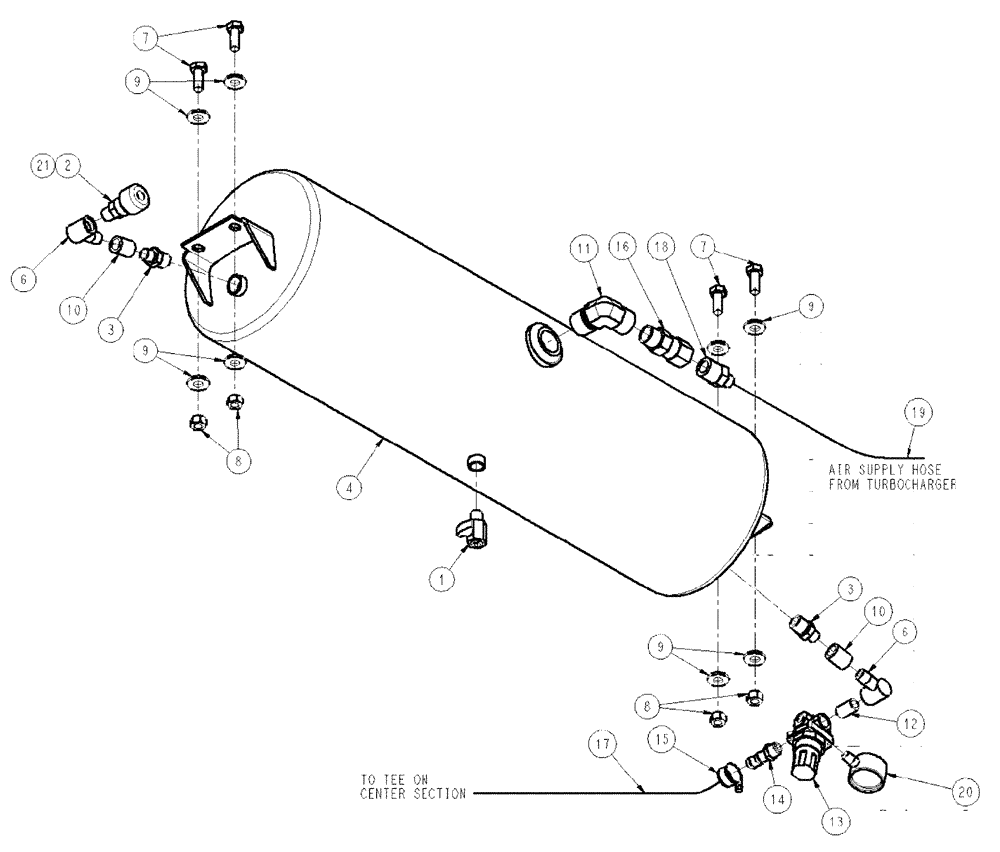

Схема запчастей Case IH SPX3200 - (09-040) - FOAMER AIR TANK GROUP Liquid Plumbing
19
15
13
1
9
10
6
9
10
7
7
9
3
8
21
11
6
12
8
9
4
14
18
20
3
16
17
2

Артикул

Название

Примечание

Количество

1

BN2292239

DRAINCOCK/TAP SUPPLY

BW103385

1шт.

2

BN2393326

COUPLING

B32

1шт.

3

BN324303

LUBE NIPPLE

Red-3/8 X 1/4NPT SS

2шт.

4

BN316553

AIR TANK

8" DIA x 32"

1шт.

6

BN73017

ELBOW

90 Street-1/4" SS

2шт.

7

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

8

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

9

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

8шт.

10

BN73015

COUPLING

1/4" NPT SS Full

2шт.

11

BN319011

FITTING

NPT -12M-8F 90 Degree

1шт.

12

BN1420036

NIPPLE

1/4" Close SS

1шт.

13

87388151

REGULATOR

Air Pressure

1шт.

14

BN324008

FITTING

1/4" NPT x 1/2" Hose Barb, Poly

1шт.

15

BN324022

HOSE CLAMP

#8, Stainless Steel

1шт.

16

BN2295247

CHECK VALVE

Air #5003980

1шт.

17

BN324519

HOSE,0.50" ID x 68.00"

EPDM

1шт.

18

BN2293122

FITTING

0103-8-6

1шт.

19

86986142

SLEEVE

Hose, 6 x 211"

1шт.

20

86986803

GAUGE

0-30 PSI, 1/8" NPT

1шт.

21

87267960

COVER

dust, air chuck, Start Serial: 5653

1шт.

22

NS

NOT SERVICED

Engine Group, Turbo Air (Foamer)

1шт.

BN2290273

BUSHING

0102-8-6

1шт.

Parts of Engine Group, Turbo Air (Foamer, P/N 343086A1)

1шт.

NS

NOT SERVICED

Adaptor, 90-3/8NPT-9/16 JIC

1шт.

Parts of Engine Group, Turbo Air (Foamer, P/N 343086A1)

1шт.

Выбрано товаров: 25
