Запчасти Case IH SPX3200 (09-036) - FOAM TANK GROUP, REAR Liquid Plumbing

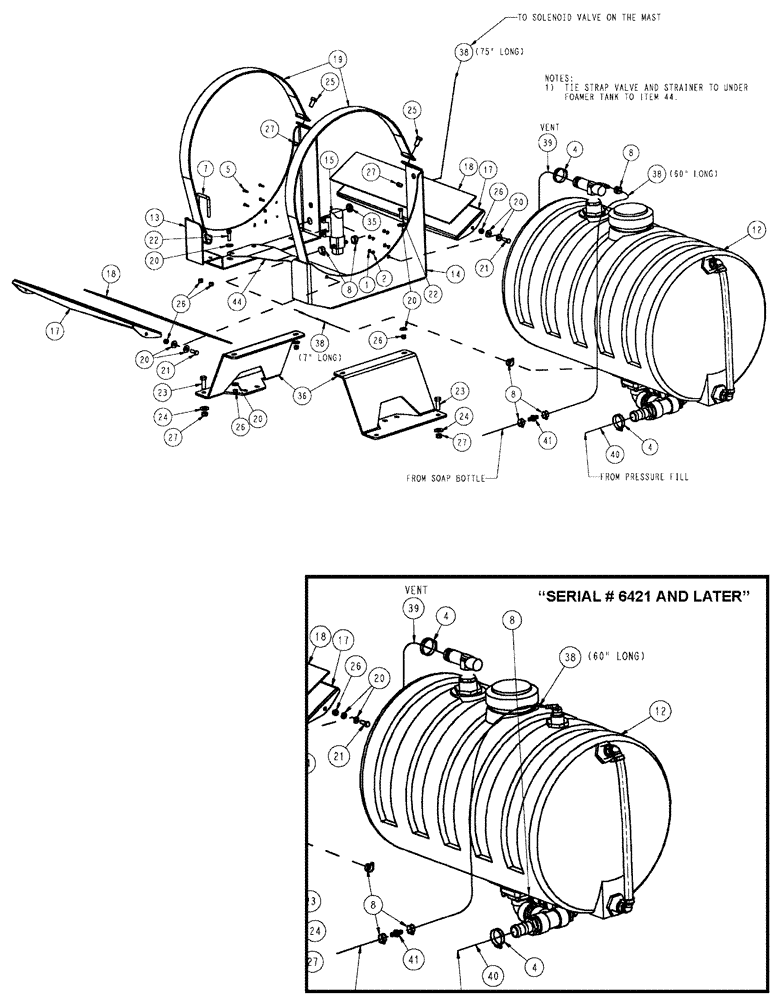

Схема запчастей Case IH SPX3200 - (09-036) - FOAM TANK GROUP, REAR Liquid Plumbing
27
40
20
23
24
17
4
25
22
12
8
44
19
38
25
20
26
26
12
8
27
22
8
27
17
20
35
41
4
24
2
38
38
8
21
23
23
20
36
5
26
1
18
20
14
39
7
26
15
27
26
39
4
24
13
27
18
41
38
20
4
8
21
17
21
18
40

Артикул

Название

Примечание

Количество

1

BN310265

WASHER

10, Stainless Steel

4шт.

2

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

4

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

5

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

7

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

2шт.

8

BN324022

HOSE CLAMP

Clamp, Hose, #8, Stainless Steel

6шт.

12

NS

NOT SERVICED

Group, Foam Tank Plumbing

1шт.

See Fig. 09-038

1шт.

13

343434A1

SUPPORT

Cradle, Foamer Tank Rear

1шт.

14

343439A1

SUPPORT

Cradle, Foamer Tank Front

1шт.

15

87727677

PUMP,12V

Diaphragm, 1 GPM, 12V, Foam Transfer

1шт.

17

87265766

SUPPORT

Foam Tank

2шт.

18

87265767

RUBBER STRIP

694mm Long x 152mm Wide x 3mm Thick

2шт.

19

343448A1

STRAP

2" Nylon web, assembly

2шт.

20

BN50146

WASHER,3/8", Stainless

16шт.

21

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

22

BN50258

BOLT,3/8"-16 X 1.25", Stainless

4шт.

23

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

24

BN50595

WASHER,1/2", Stainless

4шт.

25

BN50691

BOLT,Hex, 1/2" - 13 x 1", SST

1/2"-13 x 1, Stainless Steel

2шт.

26

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

27

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

6шт.

35

BN85855

GROMMET

Lg, for 1/2" hose

1шт.

36

86986140

BRACKET

Foam/Air Tanks

2шт.

38

BN75913

TUBE

3/8 Eva

12шт.

39

BN321053

HOSE,1.50" ID x 55.00"

Kanaflex

1шт.

40

BN322958

FLEXIBLE HOSE,1.50" ID x 90.00"

Kanaflex

1шт.

41

BN325982

CONNECTION

Mender, Hose -3/8" Barb

1шт.

43

87265988

HOSE

3/4" X 4" Clear

1шт.

44

87265987

PLATE

Foamer Tank Plumbing

1шт.

Выбрано товаров: 30
