Запчасти Case IH SPX3200 (09-035) - FOAMER OPERATOR STATION GROUP Liquid Plumbing

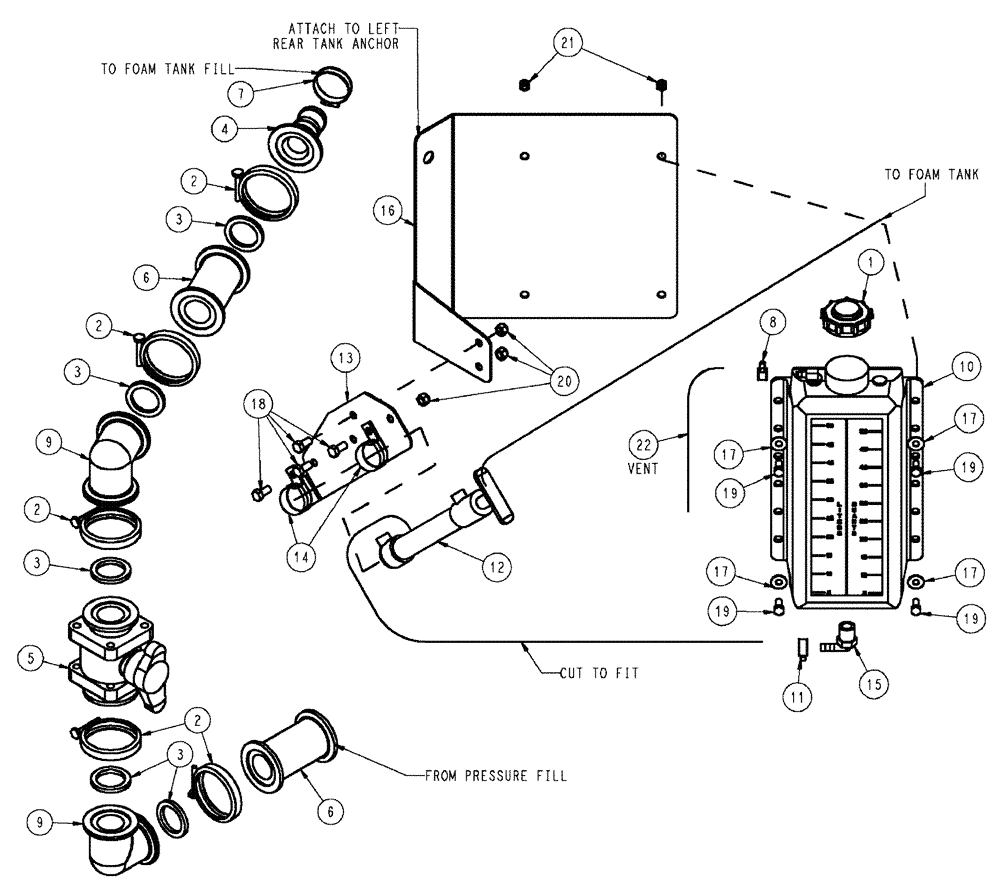

Схема запчастей Case IH SPX3200 - (09-035) - FOAMER OPERATOR STATION GROUP Liquid Plumbing
19
17
10
17
3
7
20
13
19
4
21
2
6
19
11
8
18
19
1
9
17
2
6
17
3
3
22
2
16
3
5
12
2
14
15
9

Артикул

Название

Примечание

Количество

1

1547924C1

CAP

coolant recovery bottle

1шт.

2

BN303199

CLAMP,2" Flange

2" Standard Flange

5шт.

3

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

5шт.

4

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

1шт.

5

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

Ball, 2" Flange, W/T Handle

1шт.

6

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

poly 2 flange manifold

2шт.

7

BN310448

HOSE CLAMP

#28, Stainless Steel

1шт.

8

BN310450

HOSE CLAMP

#3, Stainless Steel

1шт.

9

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

2шт.

10

BN322944

TANK

6 Qt, Poly, Natural

1шт.

11

BN324022

HOSE CLAMP

#8, Stainless Steel

1шт.

12

BN325219

PUMP

Hand, Soap Tank

1шт.

13

BN325230

BRACKET

Mount, Hand Pump

1шт.

14

BN325890

CLAMP

Vinyl Coated 1-9/16

2шт.

15

BN325981

ELBOW

1/2" MPT x 3/8" Hose Barb, Poly

1шт.

16

344254A1

MOUNTING PLATE

Soap Tank/Pump

1шт.

17

BN50142

WASHER,5/16", Stainless Steel

4шт.

18

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

19

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

20

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

21

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

22

BN324759

HOSE,0.25" ID x 17.00"

EPDM

1шт.

Выбрано товаров: 22
