Запчасти Case IH SPX3200 (09-034) - FOAMER VALVE GROUP, CENTER SECTION Liquid Plumbing

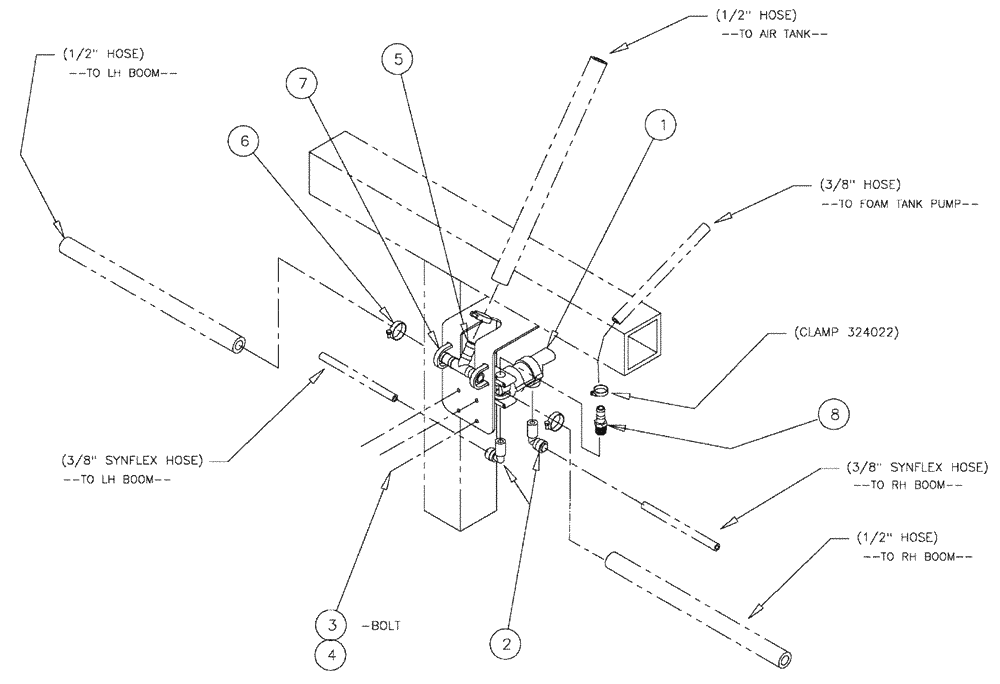

Схема запчастей Case IH SPX3200 - (09-034) - FOAMER VALVE GROUP, CENTER SECTION Liquid Plumbing
1
6
2
8
3
4
7
5

Артикул

Название

Примечание

Количество

1

BN323144

SOLENOID VALVE

3 Way, WTHR

1шт.

2

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

3

BN317051

BOLT

6-32 X 1.25"

4шт.

4

BN317053

LOCK NUT

6-32 nylon lock

4шт.

5

BN324009

TEE

All 1/2" HB, Poly

1шт.

6

BN324022

HOSE CLAMP

#8, Stainless Steel

3шт.

7

BN309265

CABLE

Tie

2шт.

8

343059A1

FITTING

Barb, STR-1/4" NPT X 3/8" H

1шт.

Выбрано товаров: 8
