Запчасти Case IH SPX3200 (09-030) - NOZZLE, 90 OUTER, 20" Liquid Plumbing

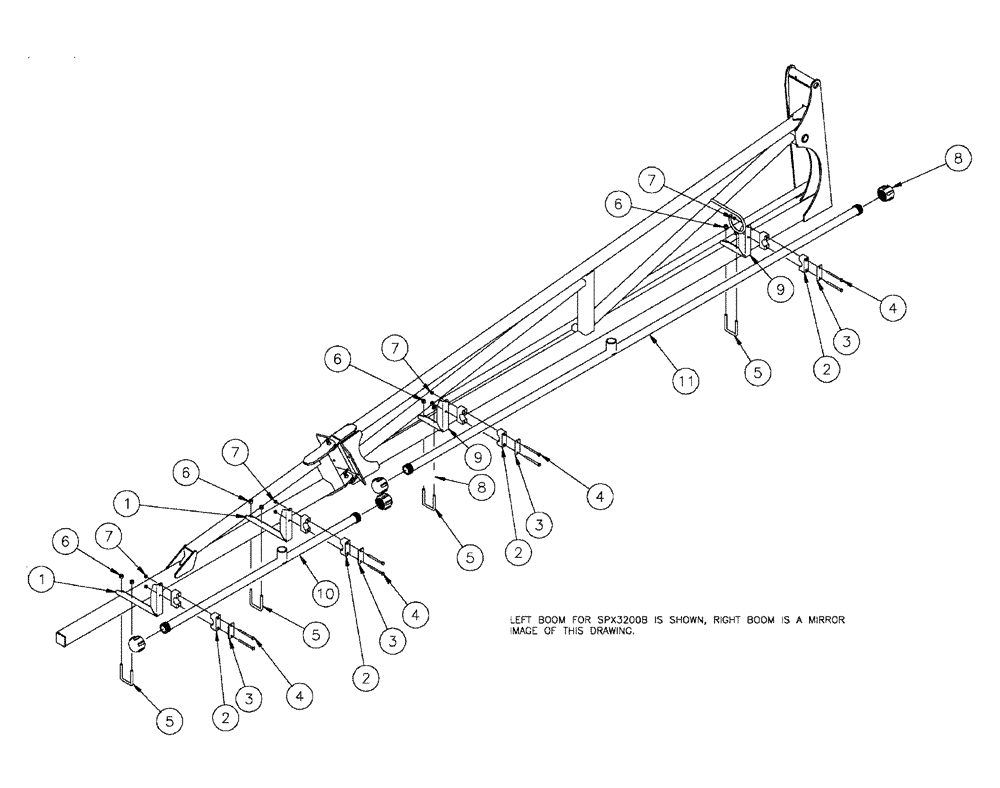

Схема запчастей Case IH SPX3200 - (09-030) - NOZZLE, 90 OUTER, 20" Liquid Plumbing
6
5
4
8
7
4
4
2
10
8
9
3
2
5
6
11
1
3
1
7
7
7
6
9
4
2
2
5
3
3
6
5

Артикул

Название

Примечание

Количество

1

87562807

BRACKET, SUPPORTING

Mount, Spraybar

2шт.

2

BN67054

CLAMP

1.315" OD

4шт.

3

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

4

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

5

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

BN73606

CAP

1" NPT, Poly Pipe

4шт.

9

BN323957

BRACKET

Mount, Spray Bar

2шт.

10

87266669

PIPE,45" Long, 3 Holes, 20" Nozzle Spacing

Spraybar, 3 Nozzles, 20" Nozzle Spacing, Stainless Steel, 45" Long

1шт.

11

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

1шт.

Выбрано товаров: 11
