Запчасти Case IH SPX3200 (09-028) - NOZZLE SPACING GRP, 5 & 6 MID, 20" Liquid Plumbing

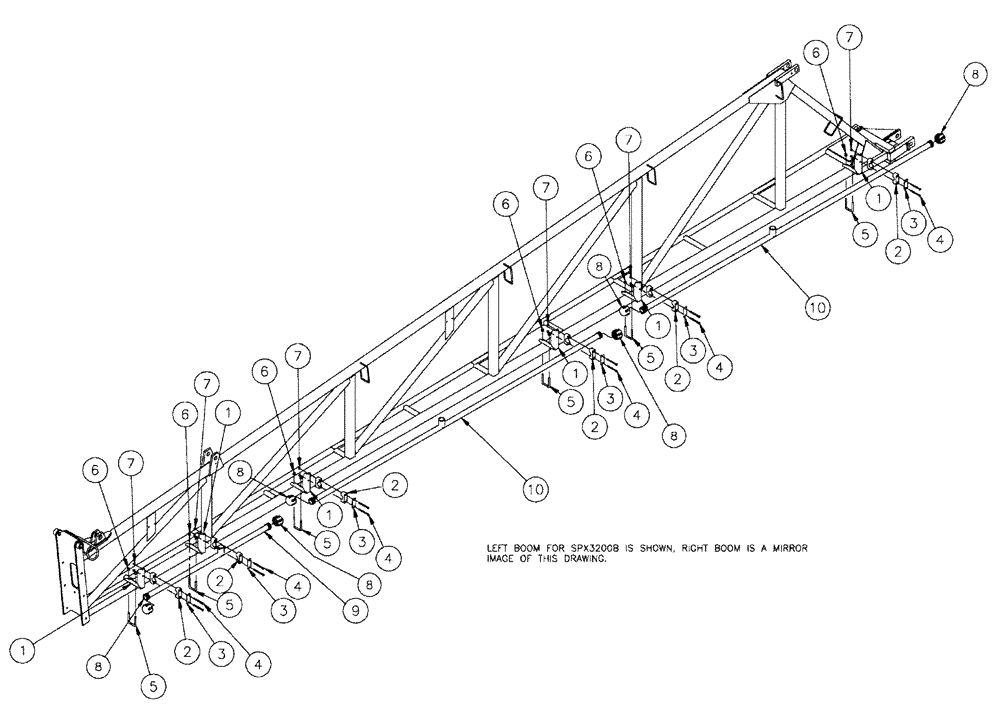

Схема запчастей Case IH SPX3200 - (09-028) - NOZZLE SPACING GRP, 5 & 6 MID, 20" Liquid Plumbing
2
6
4
2
7
2
7
3
8
6
2
5
4
10
9
8
5
8
1
8
6
5
3
5
1
10
5
7
6
1
3
z
4
2
7
3
7
3
6
1
4
7
1
8
4
2
5
3
1
8
4

Артикул

Название

Примечание

Количество

1

BN323957

BRACKET

Mount, Spray Bar

6шт.

2

BN67054

CLAMP

1.315" OD

6шт.

3

BN309483

PLATE

Clamp Top, Single Clamp

6шт.

4

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

12шт.

5

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

6шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

7

BN55359

LOCK NUT,1/4"-20, SS

12шт.

8

BN73606

CAP

1" NPT, Poly Pipe

6шт.

9

87266669

PIPE,45" Long, 3 Holes, 20" Nozzle Spacing

Spraybar, 3 Nozzles, 20" Nozzle Spacing, Stainless Steel, 45" Long

1шт.

10

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

2шт.

Выбрано товаров: 10
