Запчасти Case IH SPX3200 (09-021) - MANIFOLD GROUP, 5 SECT Liquid Plumbing

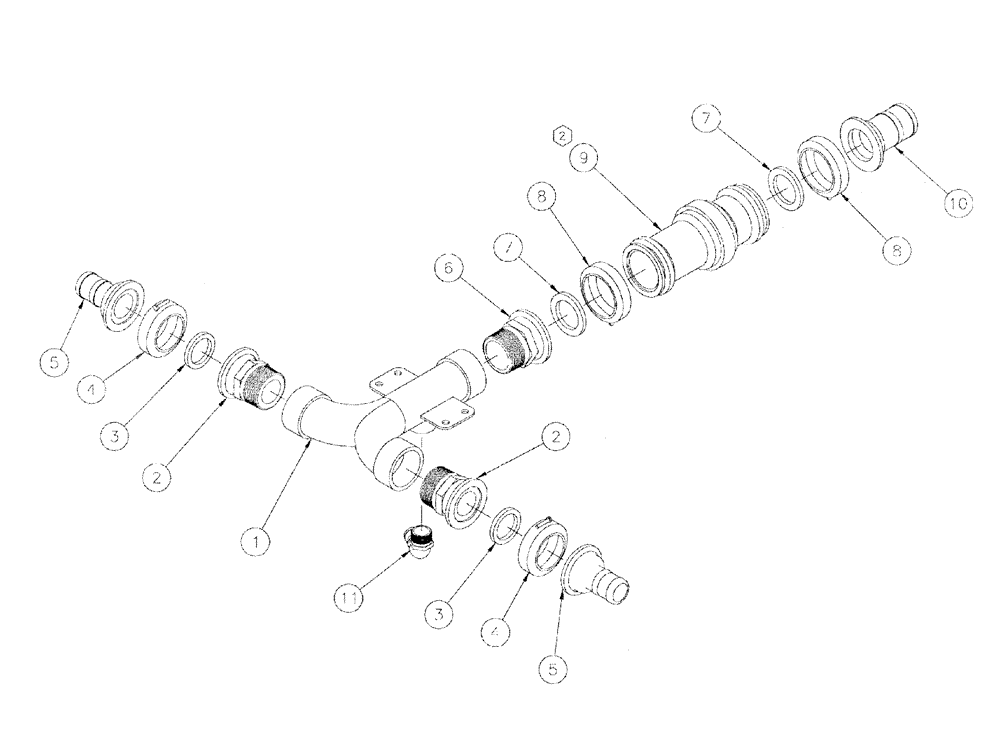

Схема запчастей Case IH SPX3200 - (09-021) - MANIFOLD GROUP, 5 SECT Liquid Plumbing
4
5
8
1
4
6
7
3
11
3
5
2
2
8
9
7
10

Артикул

Название

Примечание

Количество

1

BN319213

MANIFOLD,2" Female NPT x 2" Female NPT x 2" Female NPT, Poly

3-Way

1шт.

2

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

2шт.

3

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

4

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

5

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

2шт.

6

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

1шт.

7

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

2шт.

8

BN313773

CLAMP,2" Full Port

2" Flange

2шт.

9

BN321304

METER

Flow, RFM 100, 2 X Pulse

1шт.

10

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.

11

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

Выбрано товаров: 11
