Запчасти Case IH SPX3200 (09-020) - MANIFOLD SUPPORT GROUP Liquid Plumbing

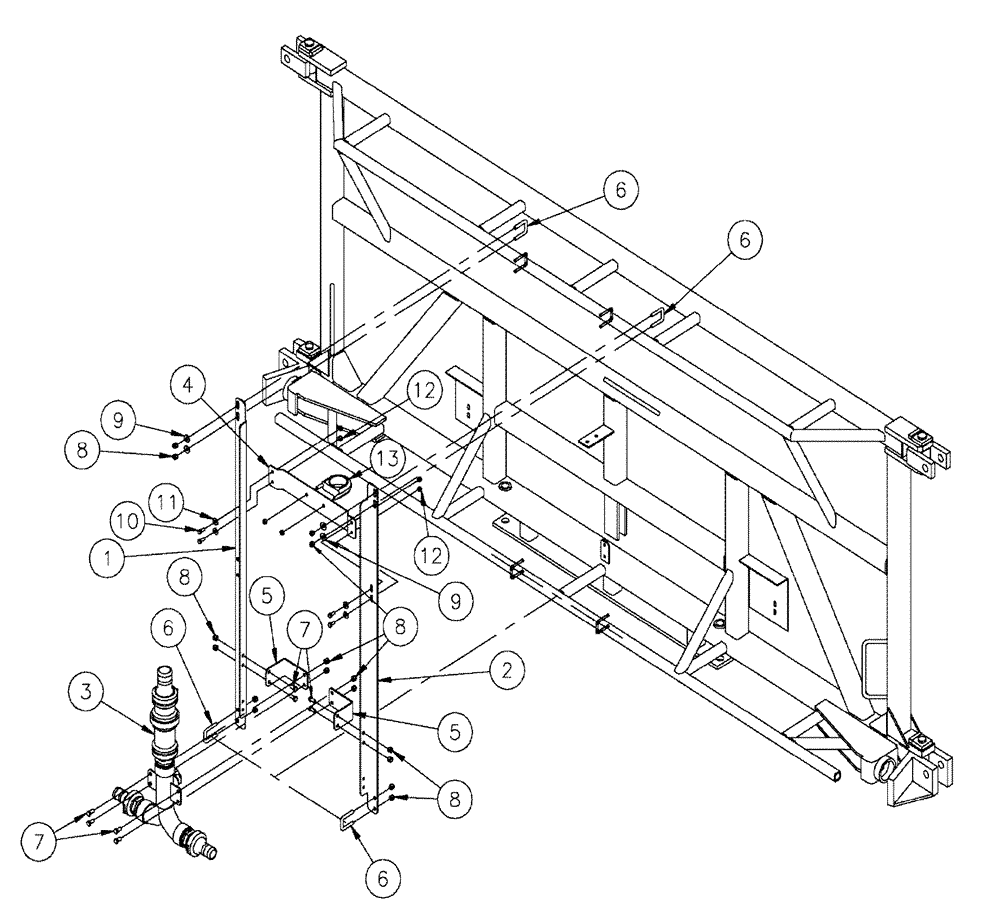

Схема запчастей Case IH SPX3200 - (09-020) - MANIFOLD SUPPORT GROUP Liquid Plumbing
7
10
1
12
6
9
5
5
13
6
8
9
7
3
8
4
11
12
6
8
8
2
6

Артикул

Название

Примечание

Количество

1

BN319656

BRACKET, SUPPORTING

MOUNT, MANIFOLD, LH

1шт.

2

BN319655

MOUNTING PLATE

MANIFOLD, RH

1шт.

3

BN319649

MANIFOLD Group, 5 Section

1шт.

See Fig. 09-021

1шт.

4

BN325194

BRACKET, SUPPORTING

MOUNT, CLAMP, 5 Section, CTR

1шт.

5

BN325193

BRACKET

3-Way Manifold

2шт.

6

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

4шт.

7

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

8

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

9

BN50146

WASHER,3/8", Stainless

4шт.

10

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

11

BN50142

WASHER,5/16", Stainless Steel

4шт.

12

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

13

BN320384

U-BOLT

BOLT "U" Clamp, 2" Pipe

1шт.

Выбрано товаров: 14
