Запчасти Case IH SPX3200 (09-019) - VALVE PLUMBING GROUP, 80 & 90 OUTER (5 & 6 SEC) Liquid Plumbing

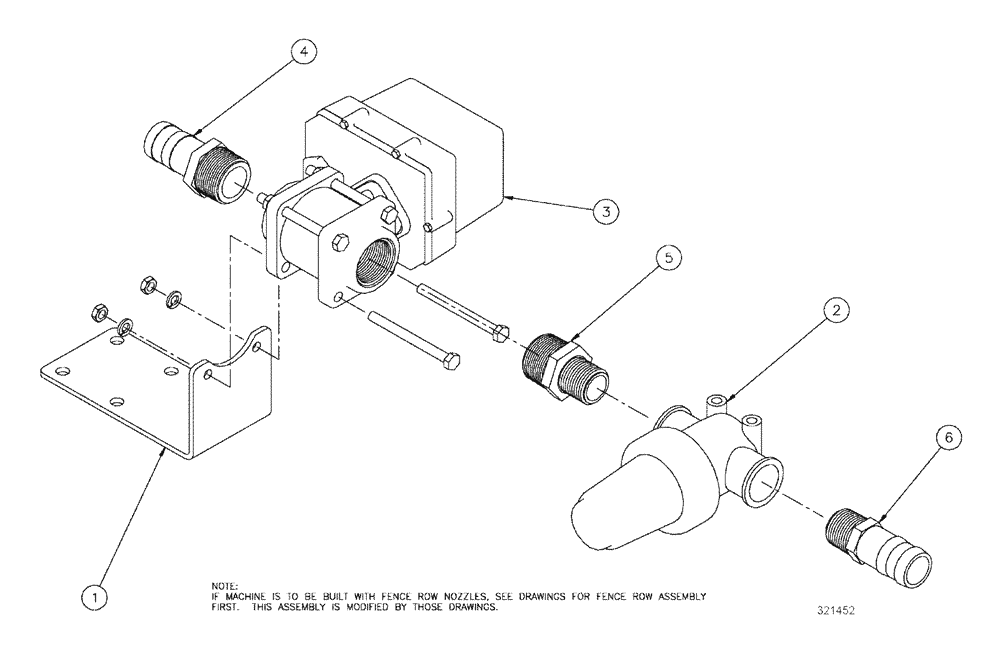

Схема запчастей Case IH SPX3200 - (09-019) - VALVE PLUMBING GROUP, 80 & 90 OUTER (5 & 6 SEC) Liquid Plumbing
5
6
4
1
3
2

Артикул

Название

Примечание

Количество

1

BN319996

BRACKET

NPT Ball Valve

1шт.

2

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

See Fig. 09-022

1шт.

3

87268179

VALVE

1.25" Ball, Electric, Start Serial: 5736

1шт.

See Fig. 09-023

1шт.

3

87268179

VALVE

1.25" Ball, Electric

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

5

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

1шт.

6

87744535

FITTING

1" NPT x 1-1/4" Hose Barb, Poly

1шт.

Выбрано товаров: 10
