Запчасти Case IH SPX3200 (09-018) - VALVE PLUMBING GROUP, 5 SECT INNER Liquid Plumbing

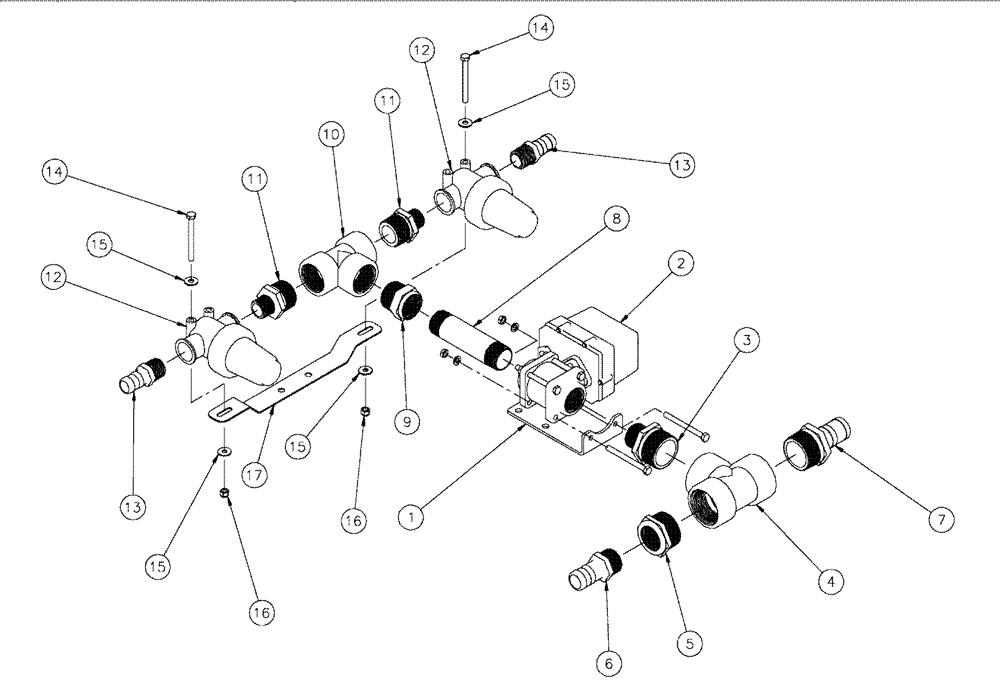

Схема запчастей Case IH SPX3200 - (09-018) - VALVE PLUMBING GROUP, 5 SECT INNER Liquid Plumbing
11
1
14
15
7
11
12
13
2
16
16
15
15
14
17
6
12
5
15
3
4
13
10
8
9

Артикул

Название

Примечание

Количество

1

BN320992

BRACKET

NPT Ball Valve

1шт.

2

87268179

VALVE

1.25" Ball, Electric, Start Serial: 5736

1шт.

See Fig. 09-023

1шт.

87268179

VALVE

1.25" Ball, Electric

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

3

BN317158

NIPPLE,2" Male NPT x 1-1/4" Male NPT

2" x 1 1/4" Reducer

1шт.

4

BN73779

TEE,2" Poly Tee

2" Poly Pipe

1шт.

5

BN73755

BUSHING,2" Male NPT x 1-1/4" Female NPT, Poly

reducer 2 x 1.25

1шт.

6

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

7

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1.5" Hose Barb

1шт.

8

BN321466

LUBE NIPPLE,1-1/4" Male NPT x 1-1/4" Male NPT, 6" Long

1-1/4" NPT X 6", Poly

1шт.

9

BN73726

REDUCER FITTING,1-1/2" MPT x1-1/4" FPT Reducing Bushing

1-1/2" NPT X 1-1/4" NPT, Poly

1шт.

10

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

11

BN73741

NIPPLE

1-1/2" NPT x 1" NPT, Poly

2шт.

12

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

2шт.

See Fig. 09-022

1шт.

13

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

14

BN320109

BOLT,5/16"-18 X 3.50", Stainless

2шт.

15

BN50142

WASHER,5/16", Stainless Steel

4шт.

16

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

17

BN320993

BRACKET

Strainer, Two 1"

1шт.

Выбрано товаров: 21
