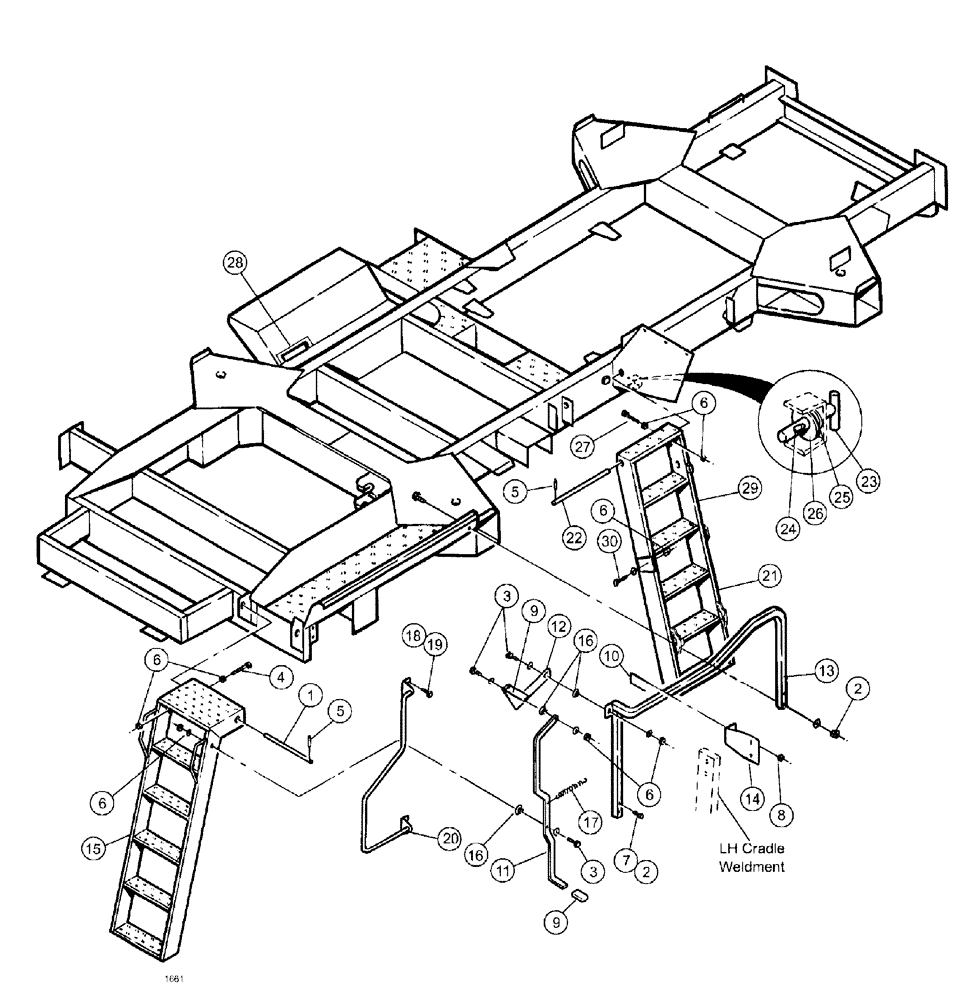

Запчасти Case IH SPX3185 (04-016) - SUSPENSION & FRAME - LADDER - LH Suspension & Frame

1

BN25138

SHAFT

1" x 17.25"

1шт.

2

280736

NUT,5/16"-18, GC

4шт.

3

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

3шт.

4

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

5

BN50605

PIN, ROLL

7/32 x 1-1/2

2шт.

6

86992215

LOCK NUT,1/2"-13, GC

13шт.

7

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

8

280129

NUT,1/4"-20

2шт.

9

BN67835

GRIP

handle

2шт.

10

BN23149

U-BOLT

1/4"-20, Square, 1.1" id x 2" Long

1шт.

11

BN307637

HANDLE

LINK ladder lift

1шт.

12

BN68064

LINKAGE

upper

1шт.

13

BN68060

RAIL

1шт.

14

BN68073

BRACKET

rail stiffener

1шт.

15

BN311242

LADDER

1шт.

4 channel plus platform

1шт.

15

BN67829

LADDER

1шт.

low profile only

1шт.

3 channel plus platform

1шт.

16

BN68133

BUSHING

6шт.

17

BN71134

SPRING

Tension, 1" x 5 "

1шт.

18

88902

NUT,3/8"-16

4шт.

19

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

20

BN67722

HANDLE

grab, front ladder

1шт.

21

BN312542

LADDER

bi-fold, 3 step

1шт.

21

BN63583

LADDER

bi fold, 2 step

1шт.

low profile only

1шт.

22

BN24557

PIN

1" CFRD x 18.75

1шт.

23

BN25257

PIN

Side Ladder

1шт.

24

BN31444

PIN, ROLL

1/4 x 1-1/2

1шт.

25

BN31937

SPRING

compr, .905 x .765, 2

1шт.

26

BN50157

WASHER

flat plated, 3/4

1шт.

27

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

28

BN24151

SEAL clip on, 12.5 "

1шт.

29

BN63582

LADDER

Bi-Fold Top

1шт.

30

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

2шт.
