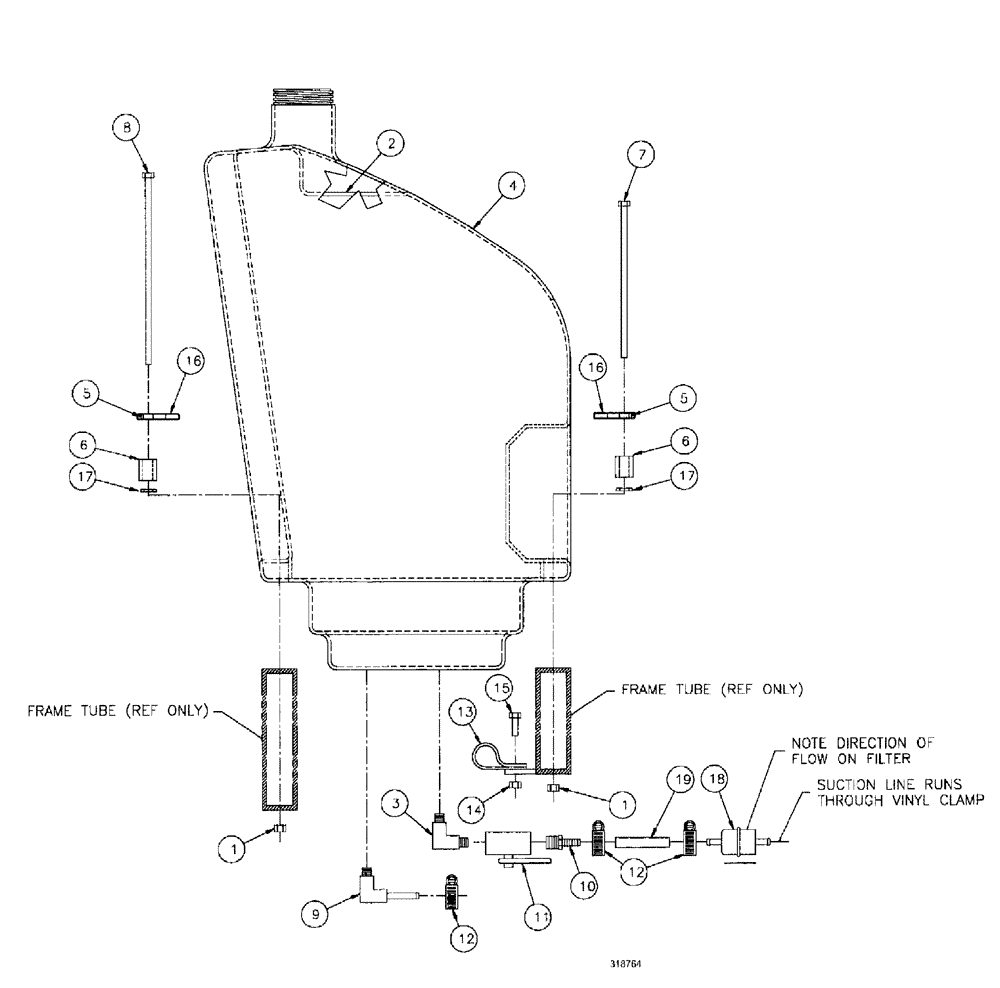

Запчасти Case IH SPX3185 (04-008) - SUSPENSION & FRAME - FUEL TANK GROUP Suspension & Frame

1

86992215

LOCK NUT,1/2"-13, GC

4шт.

2

BN66125

SENDER UNIT

SENDER fuel, 12V, 25"

1шт.

3

BN52300

ELBOW

90 deg., 1/4-18 NPT

1шт.

4

TANK fuel, see Figure 04-011

1шт.

5

BN67652

PLATE

Tank Hold Down

4шт.

6

BN67653

BUSHING

TB, RD, bushing

4шт.

7

280214

BOLT,Hex, 1/2" - 13 x 8 1/2", Gr 5

2шт.

8

413-8168

BOLT,Hex, 1/2" - 13 x 10-1/2", Gr 5

2шт.

9

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

10

BN72017

HOSE

barb-1/4" NPTM x 3/8" steel

1шт.

11

BN94071

VALVE

bronze ball, 1/4NPT

1шт.

12

BN76094

HOSE CLAMP

SS #M4

3шт.

13

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

14

88902

NUT,3/8"-16

1шт.

15

BN50254

BOLT,3/8"-16 x 1", Stainless

1шт.

16

BN320693

SLEEVE nylon, 4" w/hole

4шт.

17

BN50595

WASHER,1/2", Stainless

4шт.

18

D139225

FILTER, FUEL

barbs, 3/8"

1шт.

19

BN317990

FUEL HOSE,0.375" ID x 3.00", SAE 30R6, SAE 30R7

1шт.
