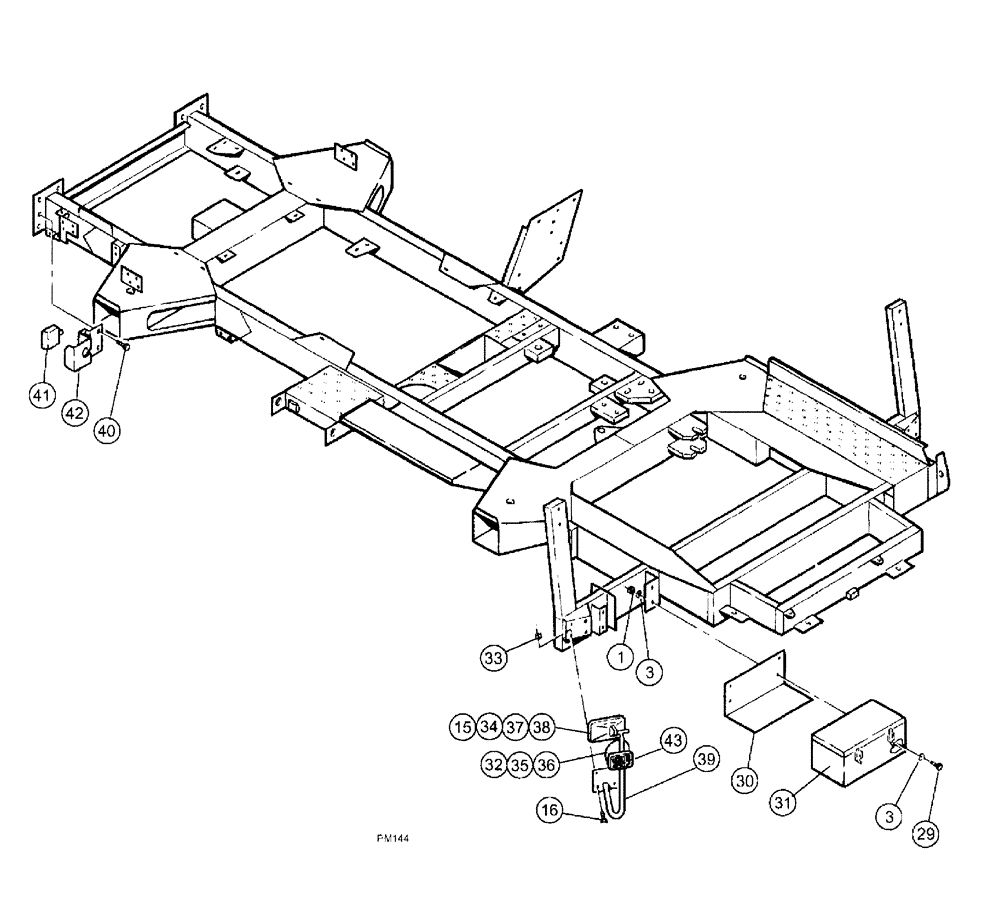

Запчасти Case IH SPX3185 (04-004) - SUSPENSION & FRAME - MIRRORS, TOOLBOX, SIGNAL LIGHT Suspension & Frame

1

BN50051

NUT,1/4"-20, USR

4шт.

3

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

8шт.

15

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

2шт.

16

BN50254

BOLT,3/8"-16 x 1", Stainless

5шт.

29

280641

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

30

BN68536

BRACKET, SUPPORTING

MOUNT tool box

1шт.

31

87268338

TOOL BOX

Portable Assembly

1шт.

32

BN50056

LOCK NUT

5/16"-18, Whiz

2шт.

33

BN50131

LOCK NUT

3/8-16, CTR, PL

4шт.

34

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

1шт.

35

BN50476

BOLT,5/16"-18 x 0.75", Stainless

1шт.

36

BN63850

MIRROR

convex, black, 8"

1шт.

37

BN63851

MIRROR

black, 7.5 x 10.5

1шт.

38

BN306477

CLAMP

Assembly, Mirror

1шт.

39

BN68252

MIRROR

WELDMENT arm

1шт.

40

50726

BOLT Hex, 5/8"-18 x 2", G5

4шт.

41

BN66129

TAIL LAMP

LIGHT tail/stop, red 12V

2шт.

41a

BN300875

BULB, 12V

2шт.

41b

BN300871

LENS

red

2шт.

41c

BN300881

CAP

Lens, Black

2шт.

42

BN68843

BRACKET

Tail light

2шт.

43

BN66130

FLASHER LAMP

Signal, Amber 12V

2шт.

43a

529068

BULB,#1156, 12V, 21W

2шт.

43b

BN300878

LENS

amber

2шт.

43c

BN300881

CAP

Lens, Black

2шт.
