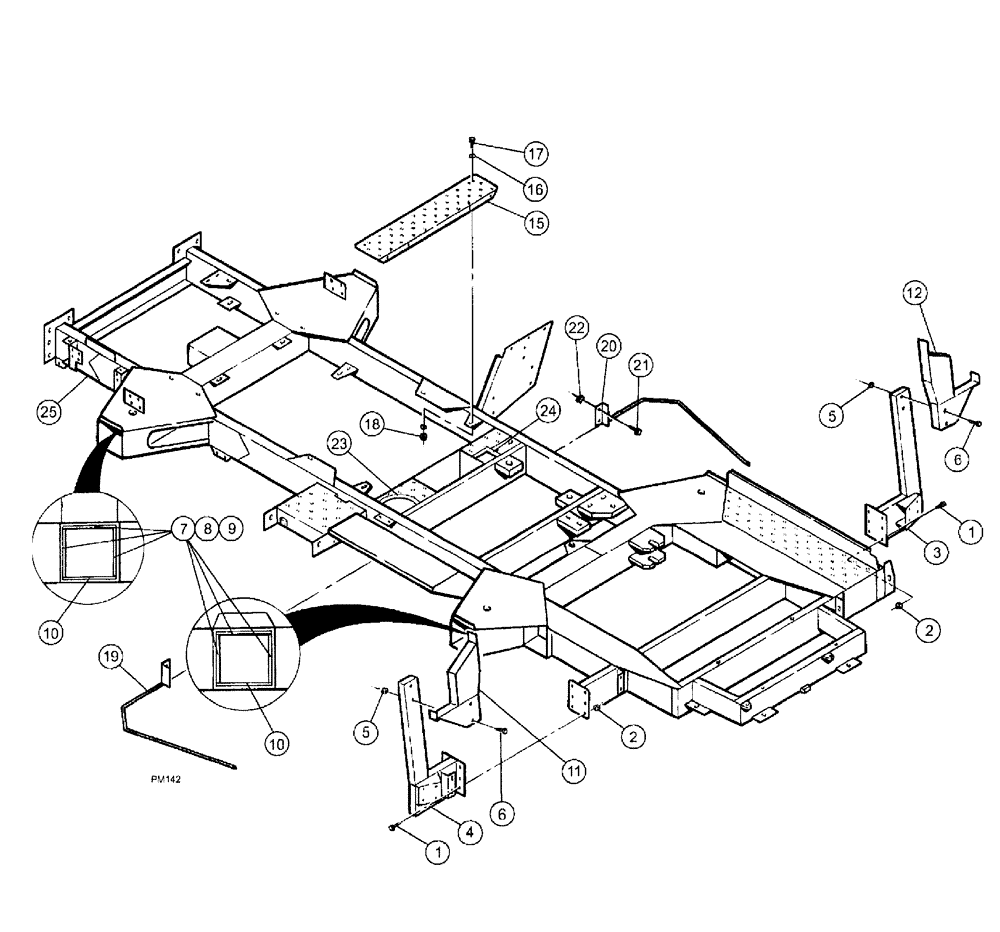

Запчасти Case IH SPX3185 (04-002) - SUSPENSION & FRAME - FRAME ASSEMBLY Suspension & Frame

1

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

2

86992215

LOCK NUT,1/2"-13, GC

6шт.

3

BN66275

SUPPORT

LH cradle

1шт.

4

BN66392

SUPPORT

RH cradle

1шт.

5

86992215

LOCK NUT,1/2"-13, GC

4шт.

6

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

7

BN50056

LOCK NUT

5/16"-18, Whiz

16шт.

8

BN50014

BOLT

5/16"-18 x .75, EH

16шт.

9

BN25527

LINER

nylatron .187 x 7 x 40

14шт.

10

BN303473

LINER

Nylatron w/notch

2шт.

11

BN24465

CRADLE

cradle, RH, 75' boom

1шт.

11a

BN66528

SUPPORT

cradle, RH, 90' boom

1шт.

Shown

1шт.

12

BN24464

CRADLE

cradle, LH, 75' boom

1шт.

12a

BN66596

SUPPORT

cradle, LH, 90' boom

1шт.

Shown

1шт.

15

BN25394

PLATFORM

Deck 14GA., HRS, 11.5 x 44.0

1шт.

Shown

1шт.

15a

BN24158

LOAD DECK

14 ga. HRS, 13" x 44"

1шт.

16

BN50142

WASHER,5/16", Stainless Steel

12шт.

17

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

18

BN68210

LOCKNUT, 5/16-18, CTR, SS

6шт.

19

BN25822

GUIDE

RH hose roller

1шт.

20

BN25823

GUIDE

LH hose roller

1шт.

21

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

22

86992215

LOCK NUT,1/2"-13, GC

4шт.

23

BN303902

SOFT TRIM

TRIM edge- 9 3/4"

2шт.

24

BN303903

SOFT TRIM

TRIM edge- 6 3/4"

1шт.

25

BN325456

FRAME

frame

1шт.
