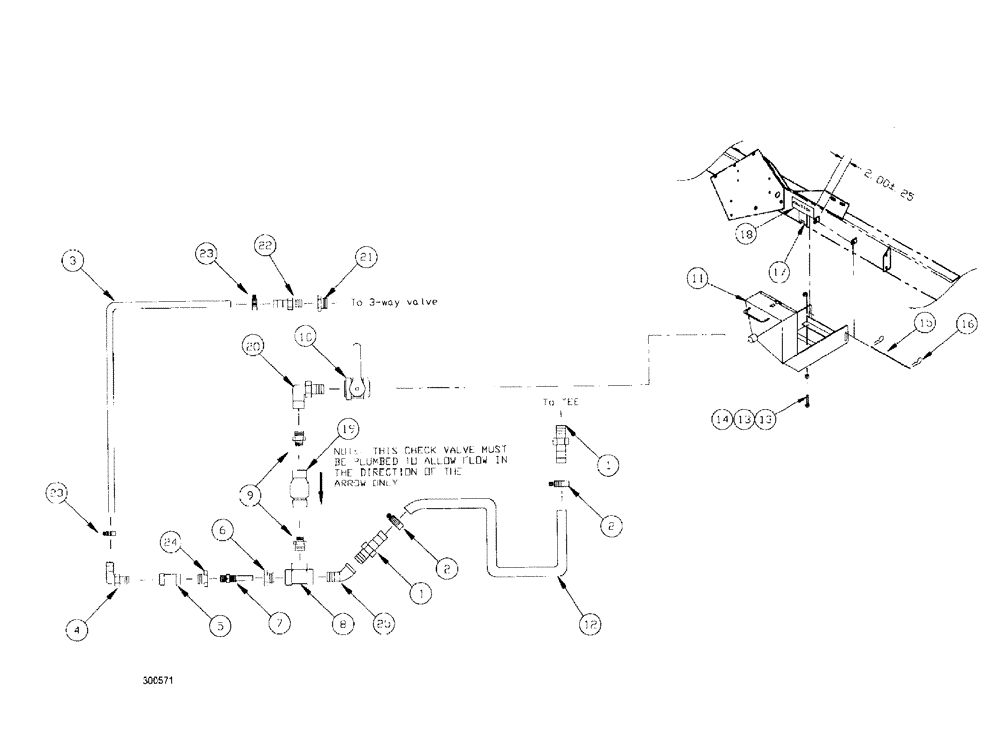

Запчасти Case IH SPX3185 (11-002) - OPTIONS - CHEMICAL INDUCTOR-SPHERICAL Options

1

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

2

BN76093

HOSE CLAMP

#28, SS

2шт.

3

BN53912

HOSE

1" ID EPDM x 38"

1шт.

4

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

5

BN66968

COUPLING

1" Poly

1шт.

6

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75, Reducer Poly

1шт.

7

BN301610

VENTURI

Rework

1шт.

8

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

9

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

1.5 x 1.25 poly

2шт.

10

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

11

BN65145

FUNNEL

CHEM IND weldment

1шт.

12

BN301615

HOSE

1.5" EPDM x 36"

1шт.

15

BN24277

PIN

3/8" SS rod x 13.75"

1шт.

16

BN71006

COTTER PIN

1/8", #11

2шт.

19

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

20

BN73730

ELBOW,1-1/2", Poly

Straight, 1 1/2" Poly

1шт.

21

BN73717

BUSHING,1-1/2" Male NPT x 1" Female NPT, Poly

1.5 x 1", Reducer Poly

1шт.

22

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

23

BN76084

HOSE CLAMP

Adj. #24, SS

2шт.

24

BN53665

BUSHING

1" x .75 Poly

1шт.

24a

333088A1

DECAL

protective clothing

1шт.

24b

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

1шт.

24c

BN50476

BOLT,5/16"-18 x 0.75", Stainless

1шт.

24d

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

24e

BN50142

WASHER,5/16", Stainless Steel

2шт.

24f

BN52035

CLAMP

2" Dia., Vinyl Coated

2шт.
