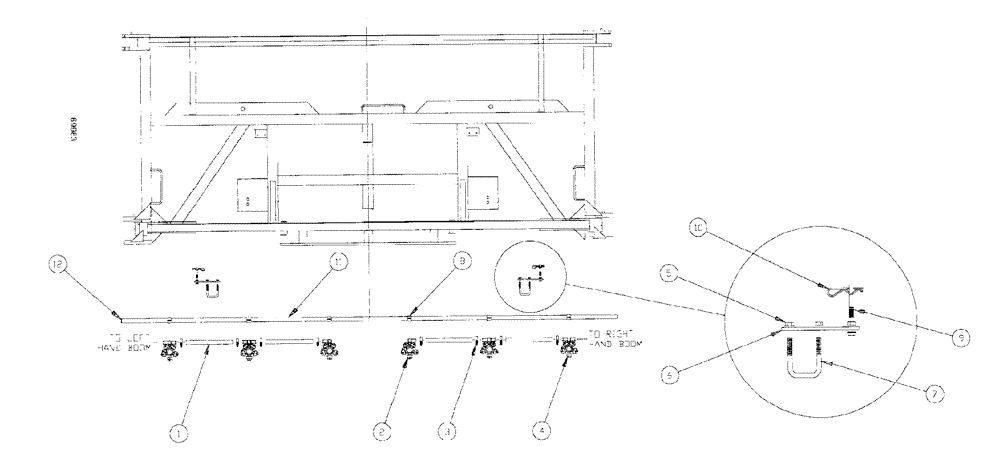

Запчасти Case IH SPX3185 (09-038) - LIQUID PLUMBING - 90 6-BOOM SHUTOFF 20" NOZZLE SPACING Liquid Plumbing

1

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

4шт.

2

BN69475

NOZZLE

5 way single, 3/4" SHA

2шт.

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

2шт.

BN74618

NOZZLE, 1 way single, 3/4" SHA

2шт.

3

BN75978

HOSE CLAMP

SS - #12 ADJ HS .56-1.25

8шт.

4

BN68699

NOZZLE

5 way double, 3/4" SHA

4шт.

4a

BN74621

NOZZLE

3-Way Double 3/4" SHA

4шт.

4b

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

4шт.

5

88902

NUT,3/8"-16

8шт.

6

BN67279

BRACKET

mount, dry boom

2шт.

7

BN67284

U-BOLT

3/8", square bend - 1.25" ID

2шт.

8

BN74448

CLAMP

1" square tubing

6шт.

9

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

10

BN71006

COTTER PIN

1/8", #11

2шт.

11

BN24486

TUBE

1" Sq x 124"

1шт.

12

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

2шт.
