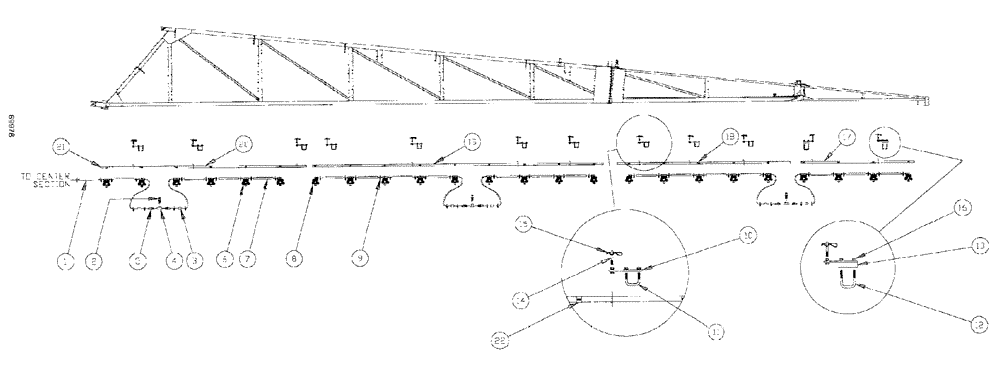

Запчасти Case IH SPX3185 (09-037) - LIQUID PLUMBING - 90 6-BOOM SHUTOFF 20" NOZZLE SPACING Liquid Plumbing

1

BN53914

HOSE,0.75" ID x 60.00"

1шт.

2

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

3шт.

3

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

6шт.

4

BN73629

TEE

1" Poly Pipe

3шт.

5

BN53666

FITTING

HOSEBARB, 1 NPT x 3/4

6шт.

6

BN68699

NOZZLE

5 way double, 3/4" SHA

19шт.

6a

BN74621

NOZZLE

3-Way Double 3/4" SHA

19шт.

6b

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

19шт.

7

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

18шт.

8

BN69475

NOZZLE

5 way single, 3/4" SHA

5шт.

8a

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

5шт.

8b

BN74618

NOZZLE, 1-way single, 3/4" SHA

5шт.

9

BN75978

HOSE CLAMP

SS - #12 ADJ HS .56-1.25

50шт.

10

BN67279

BRACKET

mount, dry boom

12шт.

11

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

12шт.

12

BN53731

U-BOLT

3/8" - square bend 2" ID

2шт.

13

BN68213

BAR

NOZZLE BAR SPACER breakaway

2шт.

14

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

12шт.

15

BN71006

COTTER PIN

1/8", #11

12шт.

16

88902

NUT,3/8"-16

48шт.

17

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

1шт.

18

BN67274

TUBE

nozzle mount

1шт.

19

BN67275

TUBE

nozzle mount

1шт.

20

BN67277

TUBE

nozzle mount

1шт.

21

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

22

BN74448

CLAMP

1" square tubing

24шт.
