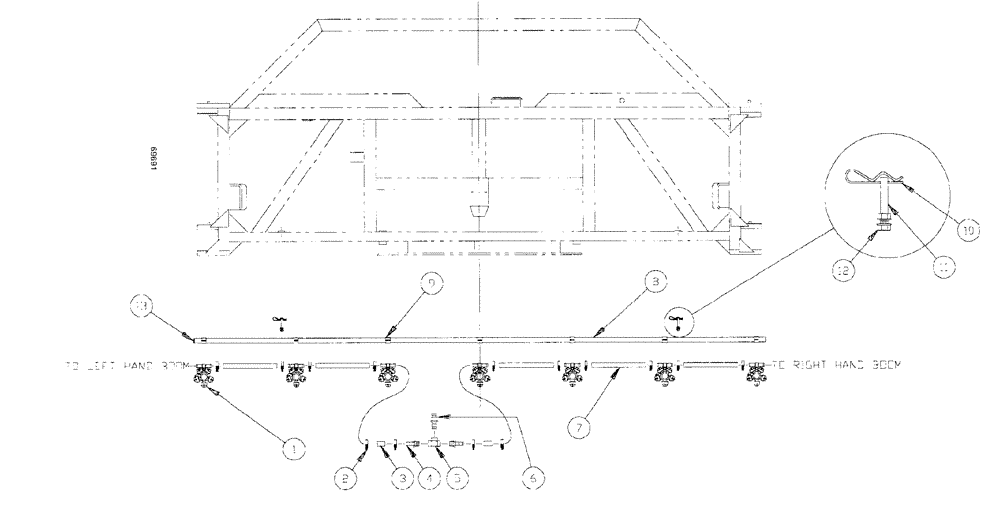

Запчасти Case IH SPX3185 (09-032) - LIQUID PLUMBING - 75 5-BOOM SHUTOFF 20" NOZZLE SPACING Liquid Plumbing

1

BN68699

NOZZLE

5 way double, 3/4" SHA

7шт.

1a

BN74621

NOZZLE

3-Way Double 3/4" SHA

7шт.

1b

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

7шт.

2

BN75978

HOSE CLAMP

SS - #12 ADJ HS .56-1.25

14шт.

3

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

2шт.

4

BN53666

FITTING

HOSEBARB, 1 NPT x 3/4 hose

2шт.

5

BN73629

TEE

1" Poly Pipe

1шт.

6

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

1шт.

7

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

5шт.

8

BN24486

TUBE

1" Sq x 124"

1шт.

9

BN74448

CLAMP

1" square tubing

7шт.

10

BN71006

COTTER PIN

1/8", #11

2шт.

11

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

12

88902

NUT,3/8"-16

4шт.

13

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

2шт.
