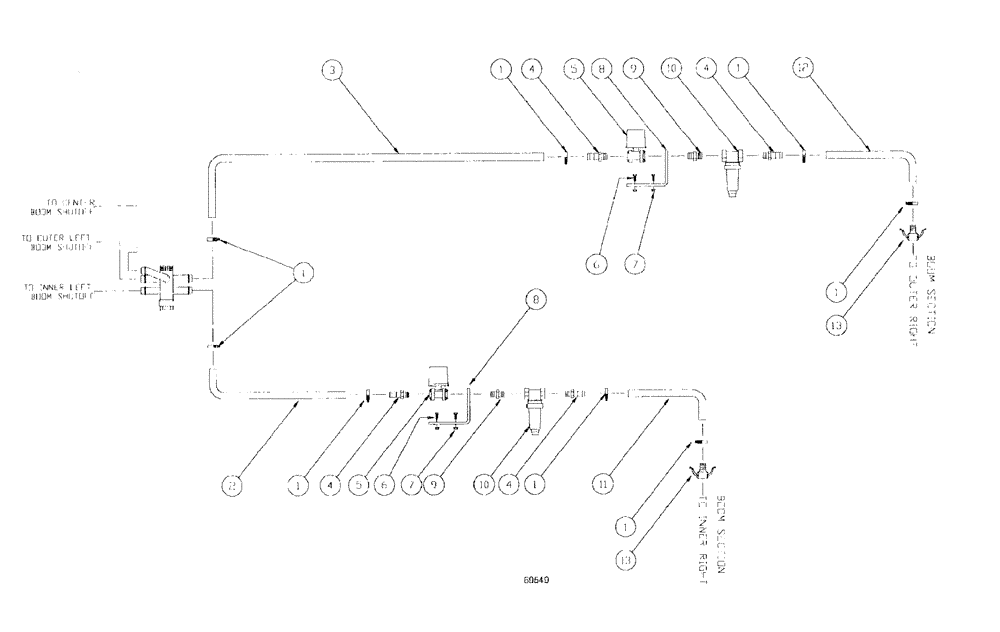

Запчасти Case IH SPX3185 (09-027) - LIQUID PLUMBING - 75 5-BOOM SHUTOFF RH BOOM Liquid Plumbing

1

BN75990

HOSE CLAMP

#16, Stainless Steel

8шт.

2

BN53758

HOSE,222.00"

1шт.

3

BN67565

HOSE

1" EPDM x 350.00"

1шт.

4

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

5

87389559

VALVE

Electric, 1" Ball

2шт.

6

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

7

280129

NUT,1/4"-20

4шт.

8

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

2шт.

9

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

10

BN73681

FILTER STRAINER

STRAINER ASSEMBLY, 1", 50 mesh

2шт.

10a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

11

BN53871

HOSE, 1" EPDM x 18.0"

1шт.

10b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

12

BN53845

HOSE, EPDM, 1" x 108"

1шт.

13

BN53668

COUPLING

1" Female, HS SHK

2шт.
